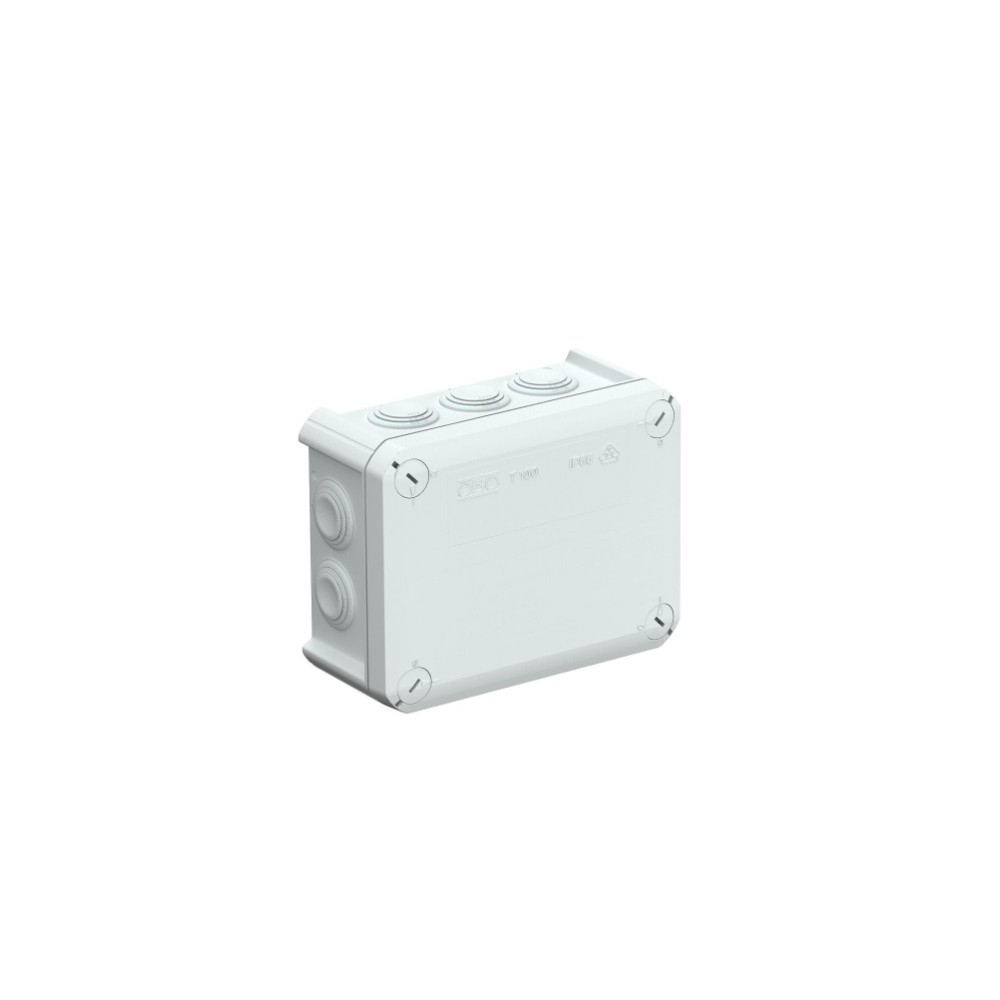

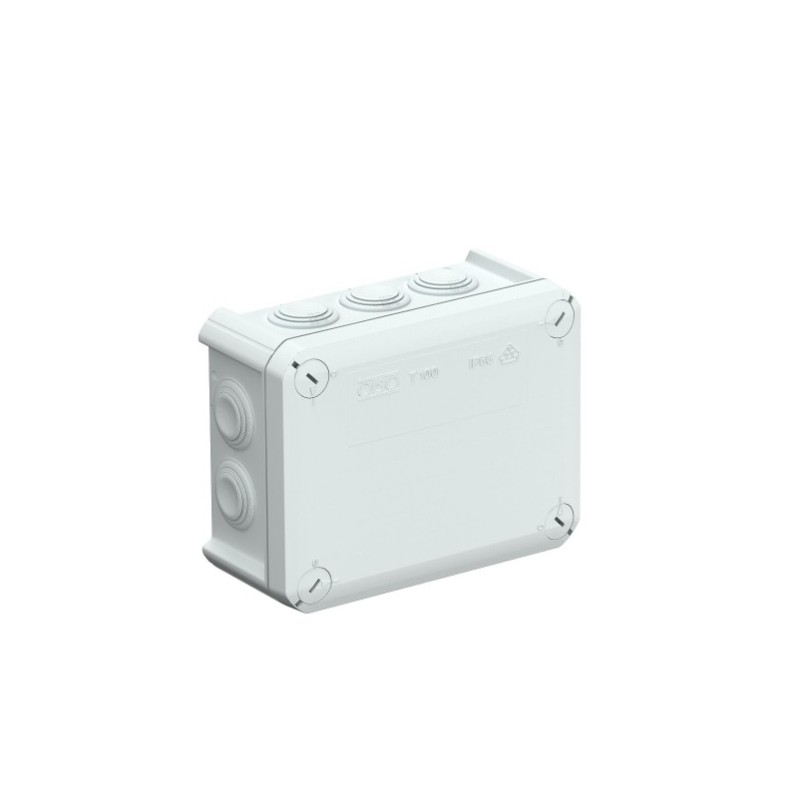

OBO 2007077 T 100 Junction box
Clear internal dimensions | 136x102x57 mm |
---|---|
CO2 Footprint (GWP) Cradle-to-Gate | 0,6856 kg CO₂e / 1 Piece |
Colour | Light grey; RAL 7035 |
Cover | Not transparent |
Cover fastening | Screwed |
Dimension | 150x116x67 |
Entries |
10 x M25 |
Entry from rear | yes |
Equipment | Without |
Expandable | yes |
Explosion-tested version | no |
Fibre-glass reinforced | no |
Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
For Ex zone | Without |
For Ex zone dust | Without |
For Ex zone gas | Without |
Halogen-free | yes |
Height | 67 mm |
Length | 150 mm |
Maintain electrical functions | Without |
Material | Polypropylene |
---|---|
Measured insulation voltage Vi | 500 V |
Mounting type | Wall/ceiling mounting |
No. of entries | 10 |
Nominal cross-section, min. | 10 mm² |
Nominal voltage | 500 V |
Permitted temperature range, max. | 60 °C |
Permitted temperature range, min. | -5 °C |
Protection rating | IP66 |
Protection rating IK code | IK07. |
Sealable | yes |
Shape | Rectangular |
Transparent lid | no |
Type of entry | Cable |
Type of housing penetration | Cuttable stepped membrane |
Type of insertion | Plug-in seal |
Weatherproof | no |
Width | 116 mm |
with lid | yes |
With screening | no |
