2007061 T 60
New product

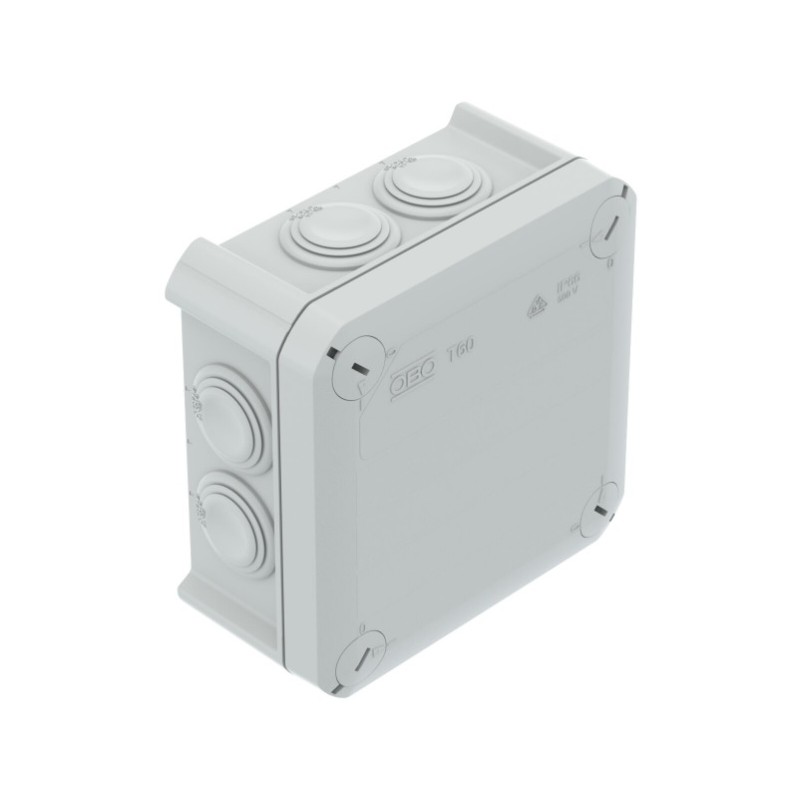

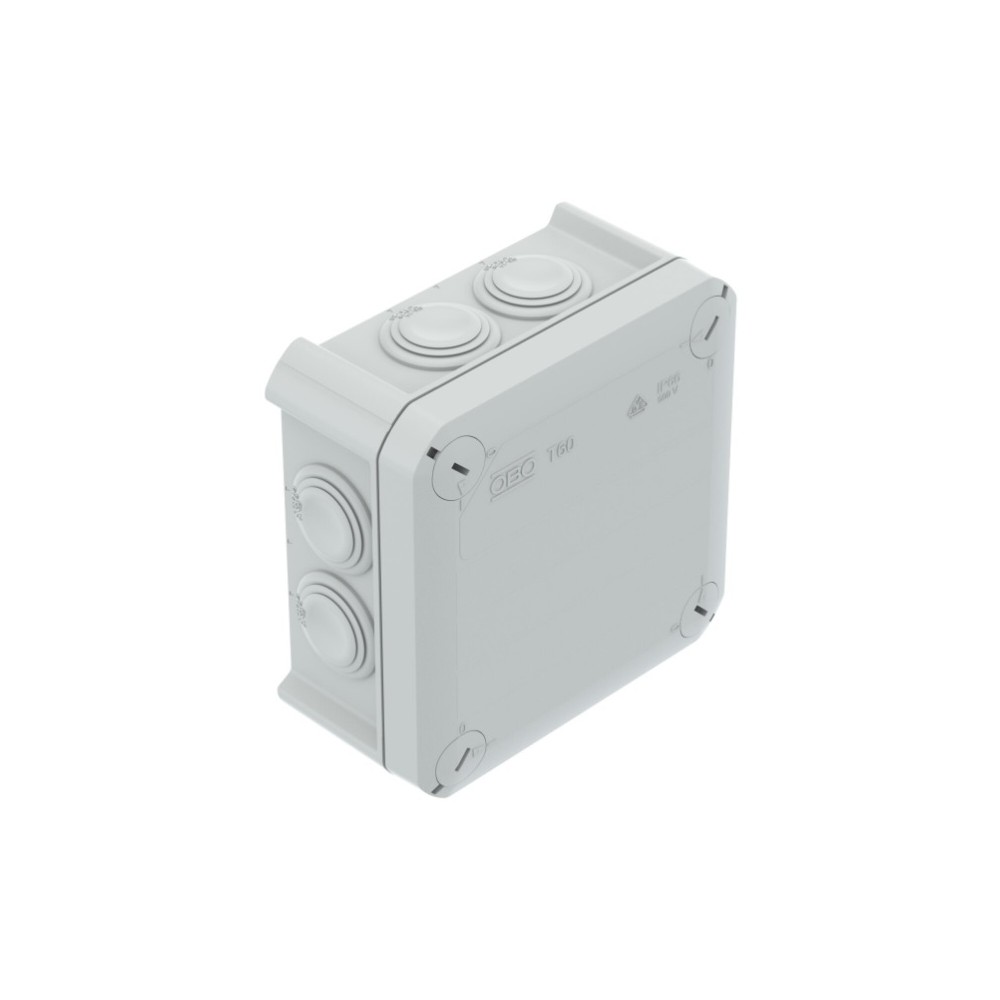

OBO 2007061 T 60 Junction box
Dimensions
| Clear internal dimensions | 100x100x48 mm |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5155 kg CO₂e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Dimension | 114x114x57 |
| Entries |
7 x M25 |
| Entry from rear | yes |
| Equipment | Without |
| Expandable | yes |
| Explosion-tested version | no |
| Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 57 mm |
| Length | 114 mm |
| Maintain electrical functions | Without |
| Material | Polypropylene |
|---|---|
| Measured insulation voltage Vi | 500 V |
| Mounting type | Wall/ceiling mounting |
| No. of entries | 7 |
| Nominal cross-section, min. | 6 mm² |
| Nominal voltage | 500 V |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP66 |
| Protection rating IK code | IK07. |
| Sealable | yes |
| Shape | Square |
| Transparent lid | no |
| Type of entry | Cable |
| Type of housing penetration | Cuttable stepped membrane |
| Type of insertion | Plug-in seal |
| Weatherproof | no |
| Width | 114 mm |
| with lid | yes |
| With screening | no |
