6GK1411-5BB00
New product

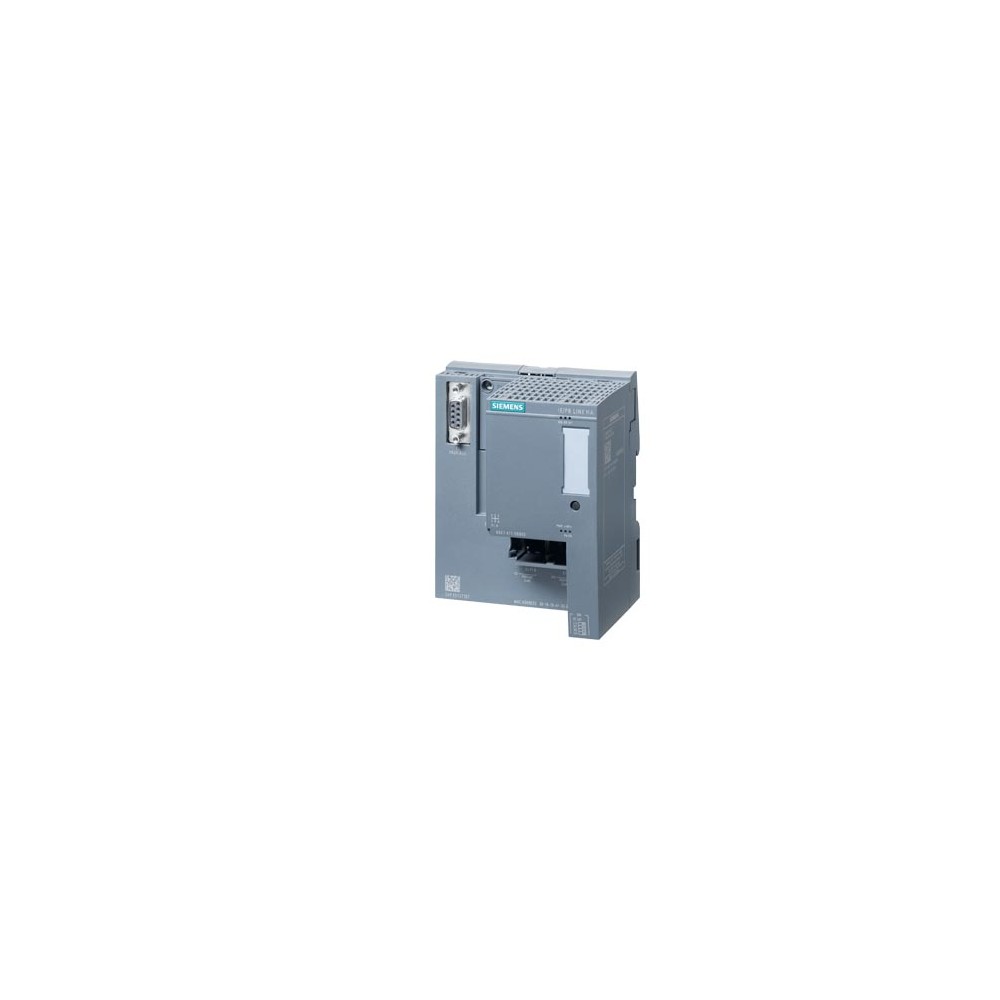

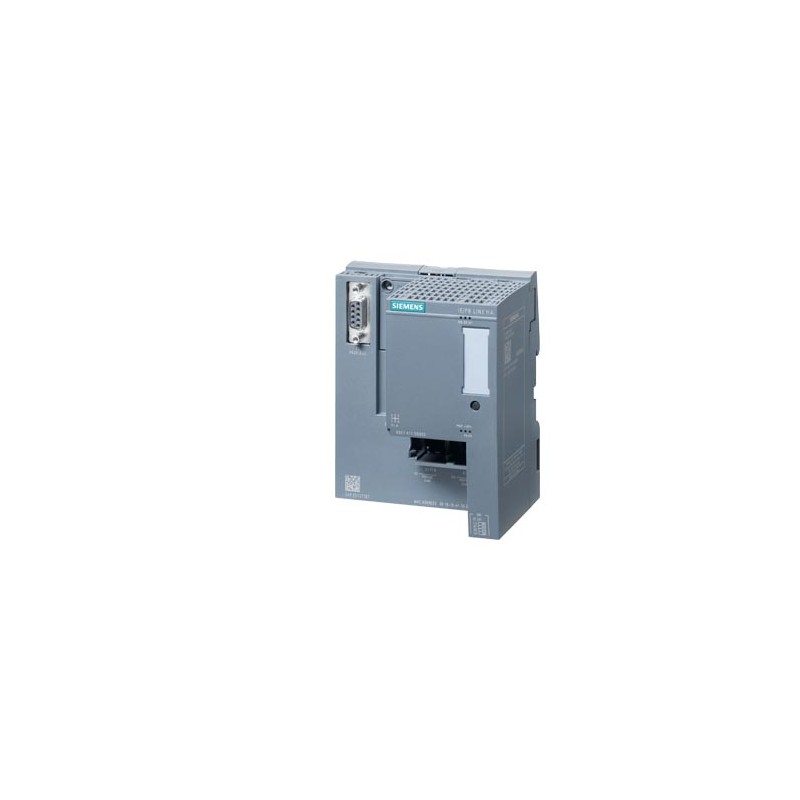

Siemens 6GK1411-5BB00
| product type designation | IE/PB LINK HA | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1411-5BB00 | |
| suitability for operation | Gateway between Industrial Ethernet and PROFIBUS | |
| transfer rate | ||
| transfer rate | ||
| ● at the 1st interface | 10 ... 100 Mbit/s | |
| ● at the 2nd interface | 9.6 kbit/s ... 12 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| ● at the 1st interface / according to Industrial Ethernet | 2 | |
| ● at the 2nd interface / according to PROFIBUS | 1 | |
| ● for power supply | 2 | |
| type of electrical connection | ||
| ● at the 1st interface / according to Industrial Ethernet | RJ45 port onboard or SIMATIC BusAdapter | |
| type of electrical connection | ||
| ● at the 2nd interface / according to PROFIBUS | 9-pin Sub-D socket (RS 485) | |
| ● for power supply | 4-pole terminal block | |
| design of the removable storage | ||
| ● C-PLUG | Yes | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage / external / at DC / rated value | 24 V | |
| relative positive tolerance / at DC / at 24 V | 20 % | |
| relative negative tolerance / at DC / at 24 V | 15 % | |
| consumed current | ||
| ● from external supply voltage / at DC / at 24 V / typical | 0.2 A | |
| ● from external supply voltage / at DC / at 24 V / maximum | 0.3 A | |
| power loss [W] | 4.8 W; typical 4.8 W, maximum 7.2 W | |
| ambient conditions | ||
| ambient temperature | ||
| ● for vertical installation / during operation | -40 ... +50 °C | |
| ● for horizontally arranged busbars / during operation | -40 ... +70 °C | |
| ● during storage | -40 ... +70 °C | |
| ● during transport | -40 ... +70 °C | |
| ambient condition / relating to ambient temperature - air pressure - installation altitude | during operation max. 2 000 m above sea level at max. 60 °C ambient temperature | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
