New
6GK1160-4AA01
New product

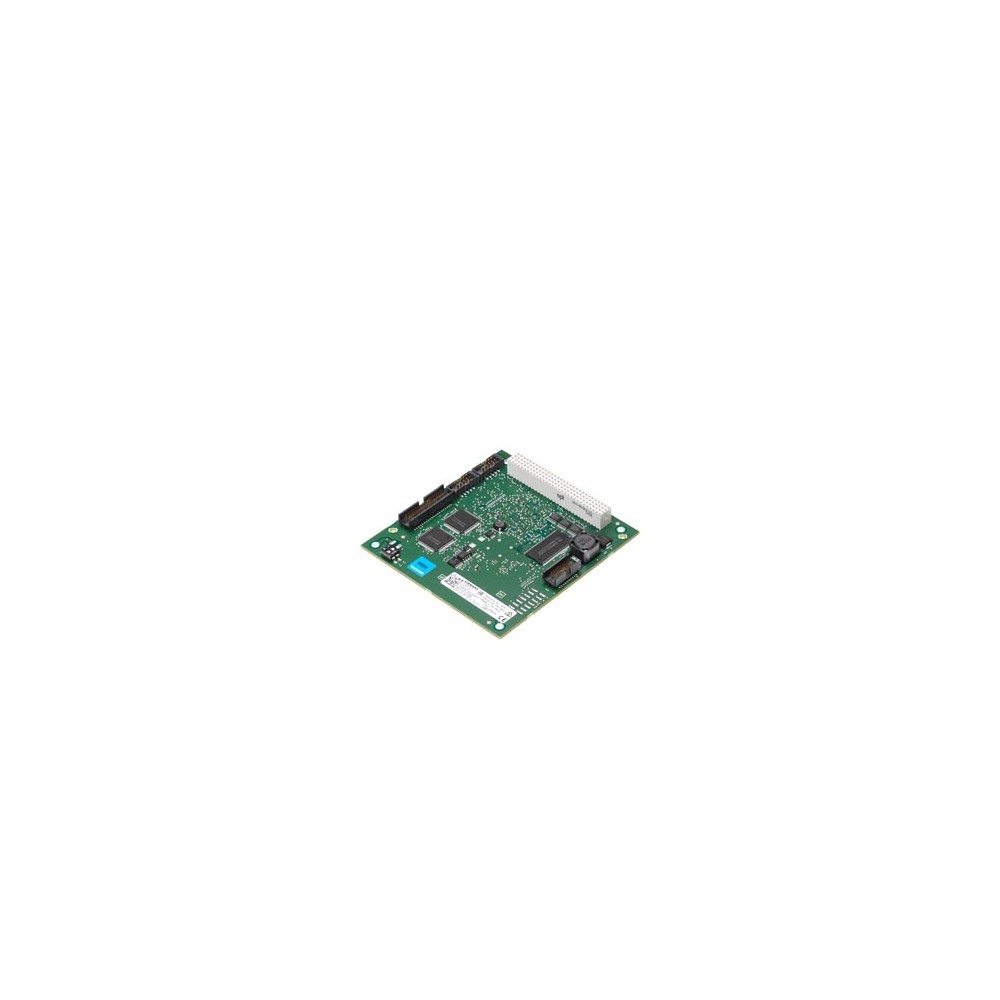

Siemens 6GK1160-4AA01
| product type designation | CP 1604 | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1160-4AA01 | |
| transfer rate | ||
| transfer rate | 100 | |
| interfaces | ||
| number of electrical connections | ||
| ● at the 1st interface / according to Industrial Ethernet | 4 | |
| ● for power supply | 1 | |
| type of electrical connection | ||
| ● at the 1st interface / according to Industrial Ethernet | RJ45 port via connection board | |
| ● of the backplane bus | PCI-104 (32Bit) | |
| ● for power supply | 4-pole terminal block through power supply board | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| type of voltage supply / optional external power supply | Yes | |
| supply voltage | ||
| ● 1 / from backplane bus | 5 V | |
| ● external | 5 V | |
| ● note | optional external power supply and external supply voltage alternatively via power supply board (optional accessory) | |
| relative symmetrical tolerance / at DC | ||
| ● at 5 V | 5 % | |
| consumed current | ||
| ● 1 / from backplane bus / at DC / maximum | 0.8 A | |
| ● from external supply voltage / at DC / at 24 V / maximum | 0.3 A | |
| power loss [W] | 4 W | |
| power loss [W] / in switch mode / maximum | 4.1 W | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | 5 ... 60 °C | |
| ● during storage | -20 ... +60 °C | |
| ● during transport | -20 ... +60 °C | |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP00 | |
