New
6GK5991-1AF00-8GA0
New product

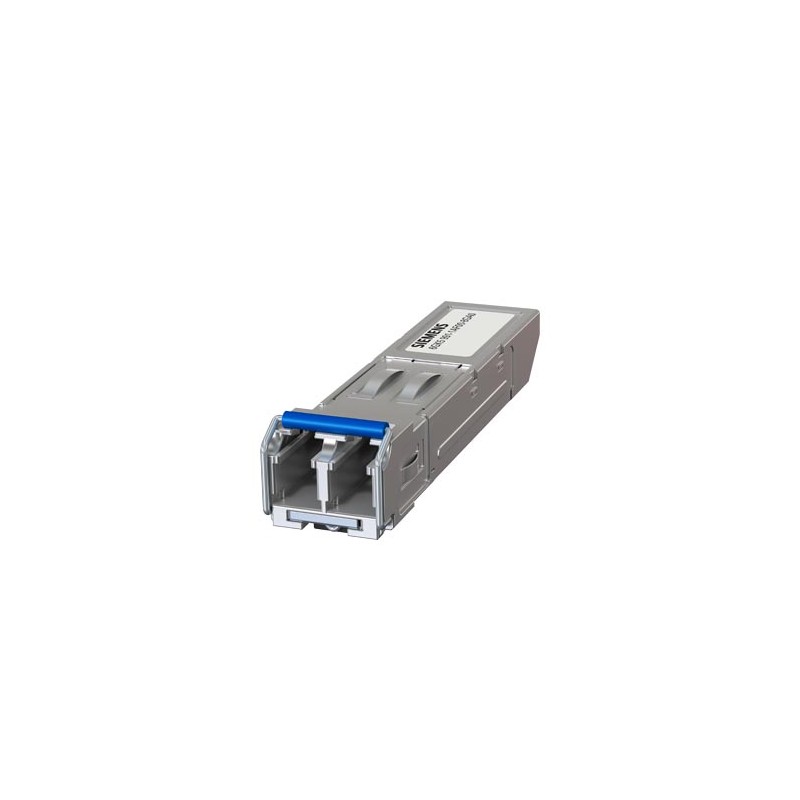

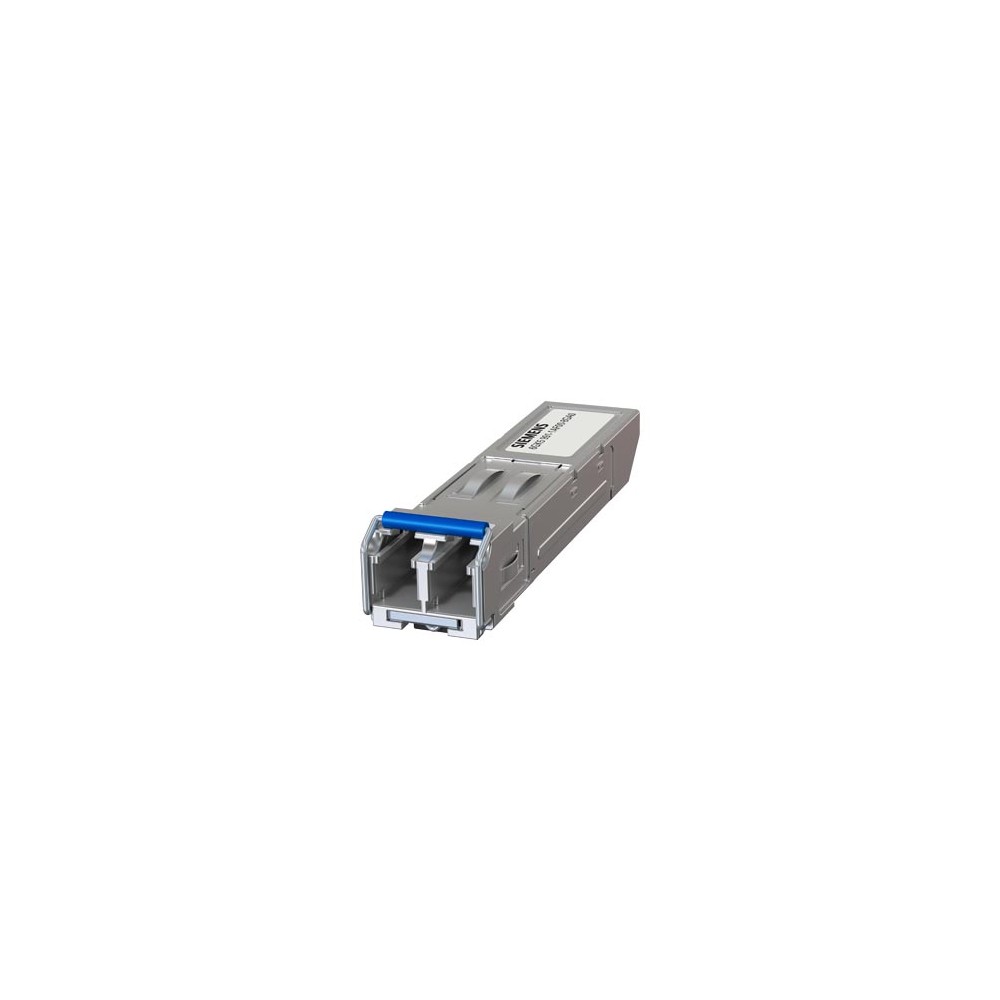

Siemens 6GK5991-1AF00-8GA0
| product type designation | SFP991-1LD A | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5991-1AF00-8GA0 | |
| interfaces | ||
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 | |
| number of optical interfaces / for network components or terminal equipment / maximum | 1 | |
| number of 100 Mbit/s LC ports | 1 | |
| design of the optical interface / for network components or terminal equipment | LC | |
| wavelength / of the optical interface | 1310 nm; Single-mode | |
| connectable optical power relative to 1 mW | ||
| ● of the transmitter output / minimum | -15 dB | |
| ● of the transmitter output / maximum | -8 dB | |
| ● of the receiver input / maximum | -8 dB | |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -31 dB | |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB | |
| range / at the optical interface / depending on the optical fiber used | 0 ... 26 km | |
| transmission method / for connection type 1 | 100BASE-LX | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -40 ... +95 °C | |
| ● during storage | -40 ... +95 °C | |
| ● during transport | -40 ... +95 °C | |
| ● note | A maximum operating temperature of +95 °C is permissible for a duration of 16 hours. | |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
