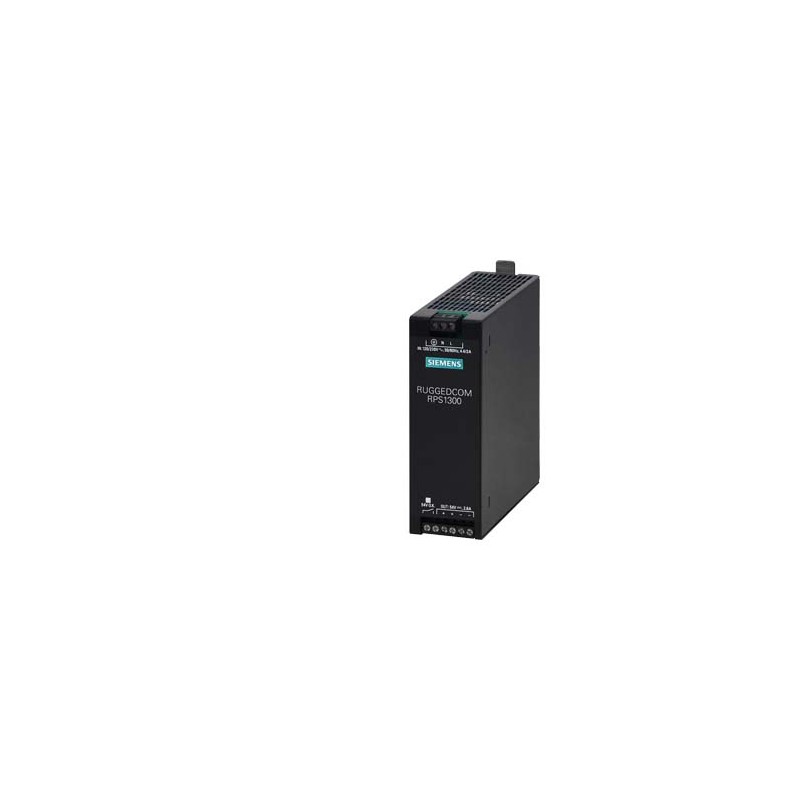

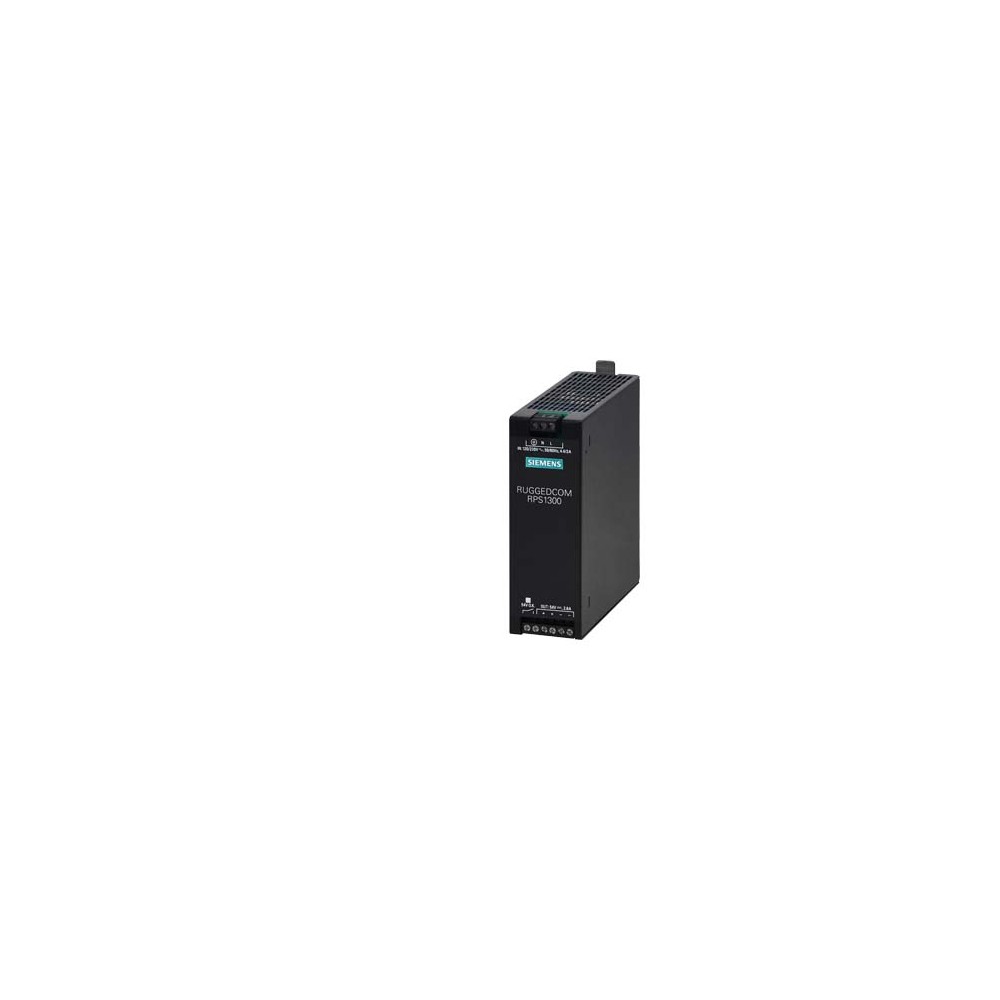

Siemens 6GK6000-8HS01-0AA0
| product type designation | RUGGEDCOM RPS1300 | |
| type of current supply | Input: AC 120/230 V, Output: DC 54 V / 2,6 A | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK6000-8HS01-0AA0 | |
| suitability for use | PoE Power Supply | |
| suitability for operation | RS900GP, RSG920P | |
| electrical data / input | ||
| voltage curve / at input | AC | |
| supply voltage / 1 / rated value | 120 V | |
| ● supply voltage / 1 / rated value | 85 ... 264 V | |
| ● type of voltage / 1 / of the supply voltage | AC 1-phase | |
| ● consumed current / 1 / at rated supply voltage / maximum | 4.4 A | |
| design of input / wide range input | Yes | |
| buffering time / for rated value of the output current / in the event of power failure / minimum | 50 ms | |
| current limitation / of inrush current / at 25 °C / maximum | 57.6 A | |
| fuse protection type / at input | Fuse T 6.3A soldered | |
| electrical data / output | ||
| voltage curve / at output | Controlled, isolated DC voltage | |
| output voltage | ||
| ● 1 / at DC / rated value | 54 V | |
| display version / for normal operation | LED green for DC ok | |
| behavior of the output voltage / when switching on | Overshoot of Ua < 2 % | |
| startup delay time / maximum | 1.5 s | |
| voltage increase time / of the output voltage / maximum | 15 ms | |
| output current | ||
| ● rated value | 2.6 A | |
| ● rated range | 0 ... 4.8 A | |
| supplied active power / typical | 140 W | |
| product feature / parallel switching of channels | No | |
| efficiency in percent | 91.6 % | |
| power loss [W] | 13 W | |
| electrical data / closed-loop control | ||
| relative overall tolerance / of the voltage | 1 % | |
| residual ripple / maximum | 0.05 V | |
| voltage peak / maximum | 0.2 V | |
| relative control precision / of the output voltage | ||
| ● on slow fluctuation of input voltage | 0.2 % | |
| ● on slow fluctuation of ohm loading | 0.5 % | |
| ● load step of resistive load 50/100/50 % / typical | 0.5 % | |
| ● with rapid fluctuation of the input voltage by +/- 15% / typical | 0.3 % | |
| setting time | ||
| ● load step 50 to 100% / typical | 0.5 ms | |
| ● load step 100 to 50% / typical | 0.5 ms | |
| electrical data / protection and monitoring | ||
| design of the overvoltage protection / at output | < 60 V | |
| response value current limitation / typical | 4.8 A | |
| property of the output / short-circuit proof | Yes | |
| design of short-circuit protection | Electronic overload and short-circuit protection, automatic restart "hiccup" | |
| electrical data / safety | ||
| galvanic isolation / between input and output | Yes | |
| galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 | |
| operating resource protection class | Class I | |
| leakage current | ||
| ● maximum | 3.5 mA | |
| ● typical | 1 mA | |
| interfaces | ||
| number of electrical connections | ||
| ● for power supply | 3 | |
| ● for signaling contact | 2 | |
| type of electrical connection | ||
| ● for signaling contact | Screw terminal 0.5 - 2.5 mm² | |
| ● at input | FE / L / N screw-type terminal 0.5 - 2.5 mm² | |
| ● at output | 2x + / 2x - , screw-type terminal 0.5 - 2.5 mm² | |
| signal inputs/outputs | ||
| product component / signaling contact | Yes | |
| relay design | Normal open contact (N/O) | |
| operating voltage / of the signaling contacts | ||
| ● at DC / rated value | 24 V | |
| ● at DC / maximum | 60 V | |
| operational current / of the signaling contacts | ||
| ● at DC / maximum | 0.3 A | |
| ● at DC / at 30 V / maximum | 0.3 A | |
| design, dimensions and weights | ||
| width | 42 mm | |
| height | 125 mm | |
| depth | 125 mm | |
| net weight | 0.5 kg | |
| product feature / of the enclosure / housing can be lined up | Yes | |
| fastening method | ||
| ● 19-inch installation | No | |
| ● wall mounting | No | |
| ● 35 mm DIN-rail mounting | Yes | |
| ● S7-300 rail mounting | No | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -40 ... +75 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| ● note | Convection, clearance above/below required | |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| environmental category / according to IEC 60721 | Climate class 3K3, without condensation | |
| protection class IP | IP20 | |
