6ES7511-1AL03-0AB0

Condition: New product

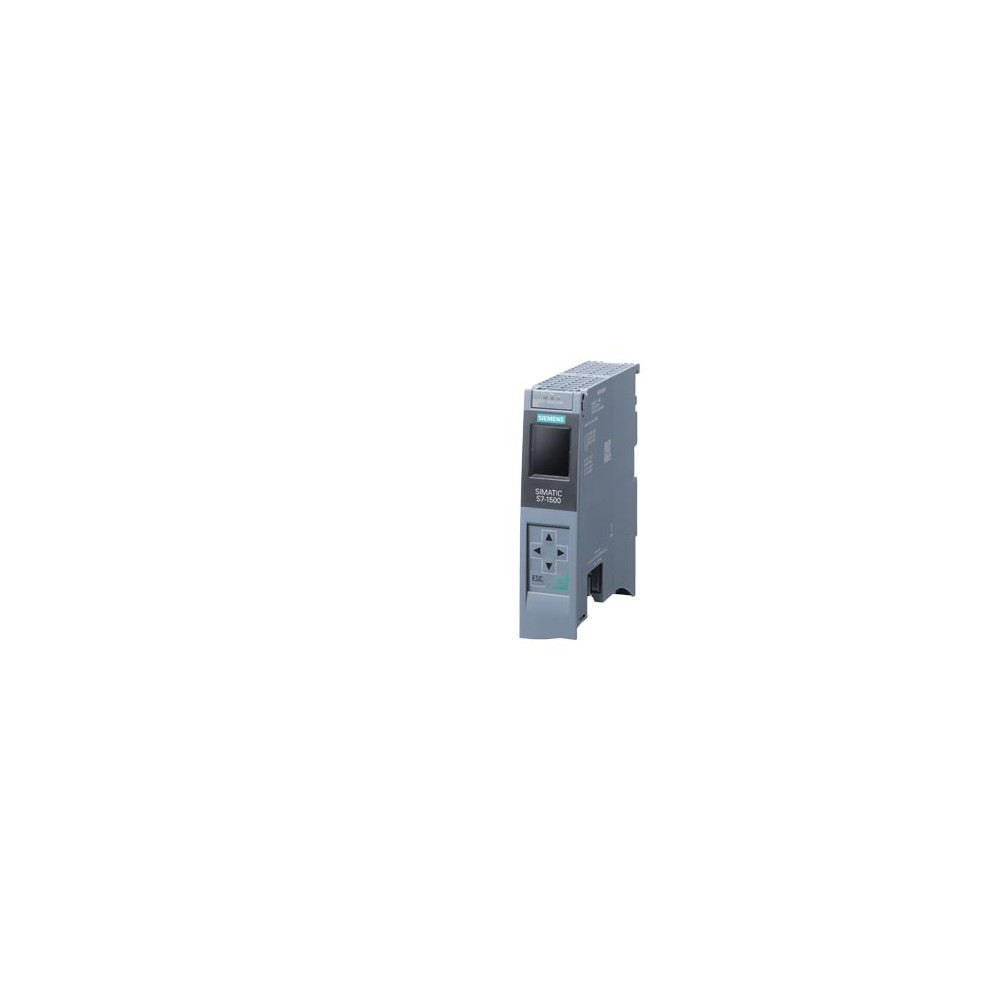

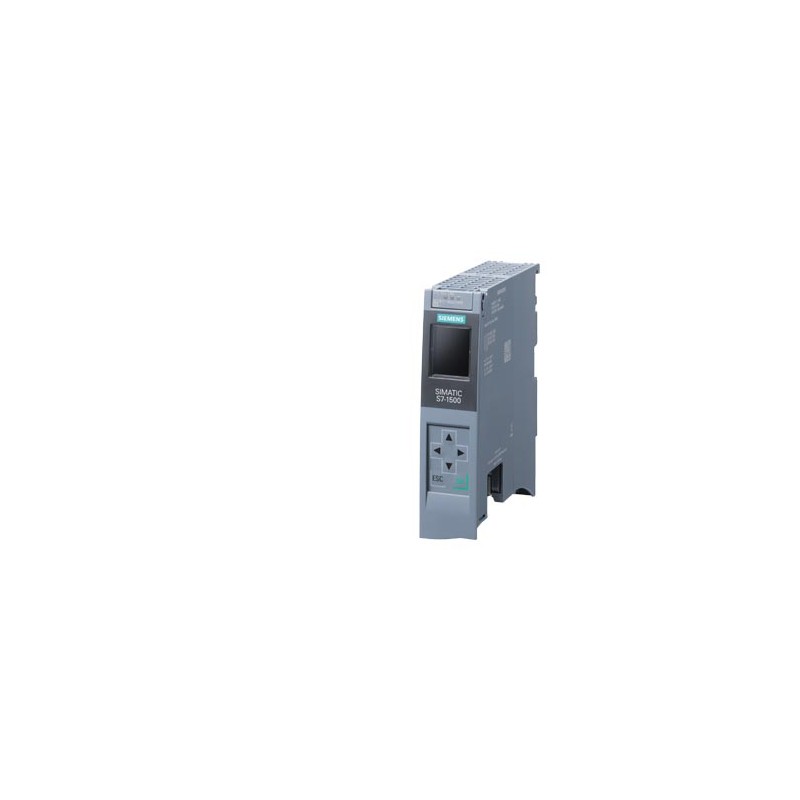

Siemens 6ES7511-1AL03-0AB0

General information
Product type designation		CPU 1511-1 PN
HW functional status		FS04
Firmware version		V4.1
● FW update possible		Yes
Product function
● I&M data		Yes; I&M0 to I&M3
● Isochronous mode		Yes; Distributed and central; with minimum OB 6x cycle of 500 µs (distributed) and 1 ms (central)
● SysLog		Yes
Engineering with
● STEP 7 TIA Portal configurable/integrated from version		V21 (FW V4.1) / V18 (FW V3.0) or higher; configurable with older TIA Portal versions as 6ES7511-1AK02-0AB0
Configuration control
via dataset		Yes
Display
Screen diagonal [cm]		3.45 cm
Control elements
Number of keys		8
Mode buttons		2
Supply voltage
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Mains buffering
● Mains/voltage failure stored energy time		5 ms
● Repeat rate, min.		1/s
Input current
Current consumption (rated value)		0.56 A
Current consumption, max.		0.9 A
Inrush current, max.		1.15 A; Rated value
I²t		0.5 A²·s
Power
Infeed power to the backplane bus		10 W
Power consumption from the backplane bus (balanced)		5.5 W
Power loss
Power loss, typ.		3.4 W
