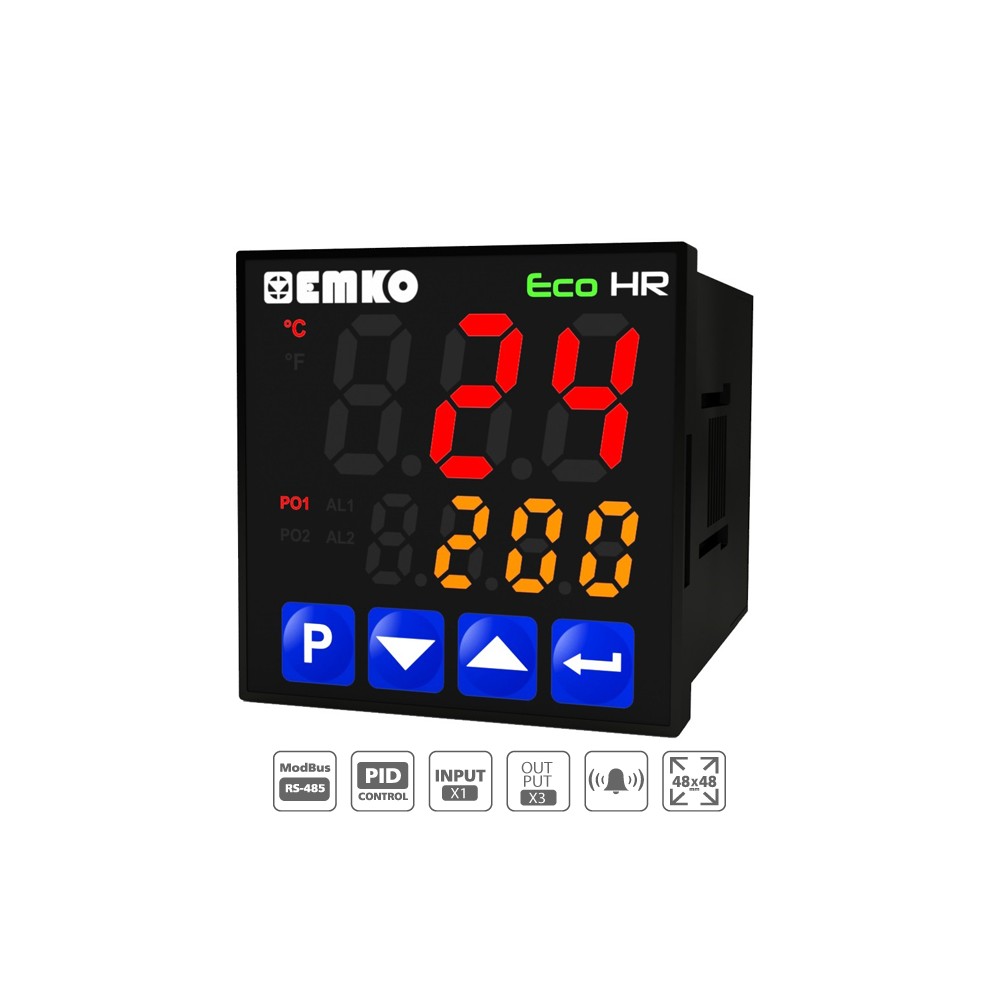

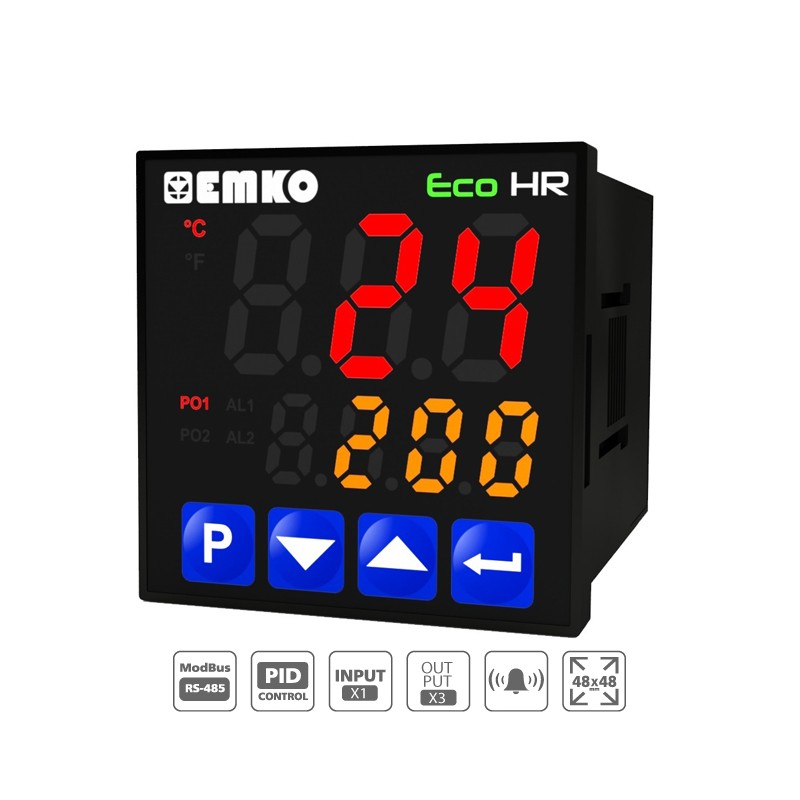

ECO HR PID Hot-Runner Control Unit

New product

ECO HR
PID Hot-Runner Control Unit

High Resolution Sensitive PID control, TC (J,K,R,S,T Input Types) selectable by parameter, Low Power Consumption, Energy saving and Environmentally Friendly with 2VA, Saving and Recovery of user parameters, Return to Factory Settings, RS-485 Modbus (RTU) communication option, Activate 2nd Set Value by front panel, Digital or RS-485 input for activate the 2nd Set Value (Optional),3 digits Process (PV) and 4 digits Set (SV) display, Process input ( TC ), Programmable ON-OFF,P, PI, PD, PID control forms, Adaptation of PID Coefficients to the system,with Self-Tune operation (Step ResponseTuning), Selectable heating and cooling function, Selectable temperature offset value, Operation type selection with hysteresis, Minimum pulling time adjustment for control outputs, Password protection for programming mode
