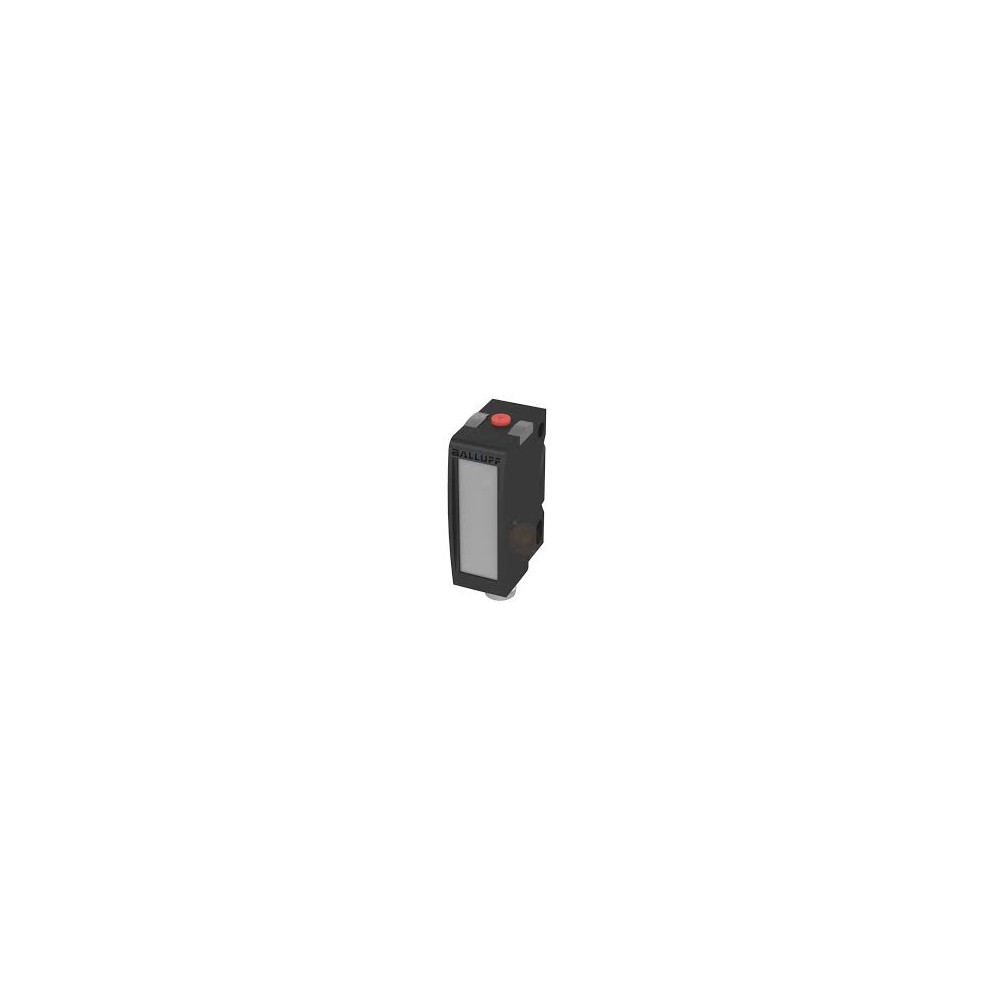

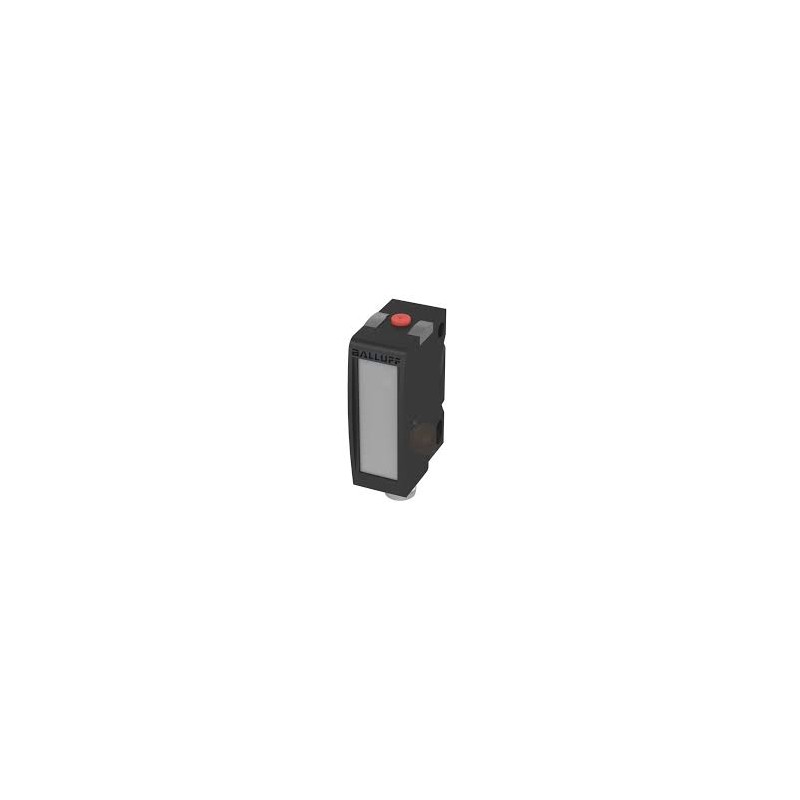

Balluff BKT0014 BKT 6K-010-I-S75 Contrast sensors
Series; 6K
Dimension; 12 x 34 x 21.6mm
Input function; Key disable on/off / Same function as button
Interface; IO-Link / Push-Pull/IO-Link NO/NC
Working principle; Contrast Sensor
Optical working principle; Diffuse reflection sensor, focused
Light type; LED white light
Light zone size; 1 x 4mm in 12mm
Range; 9.5...14.5mm
Connection; Connector, M8x1-male, 4-pole
Outer body material; ABS
Detection surface material; PMMA
Working voltage Ub; 10th..30 VDC
