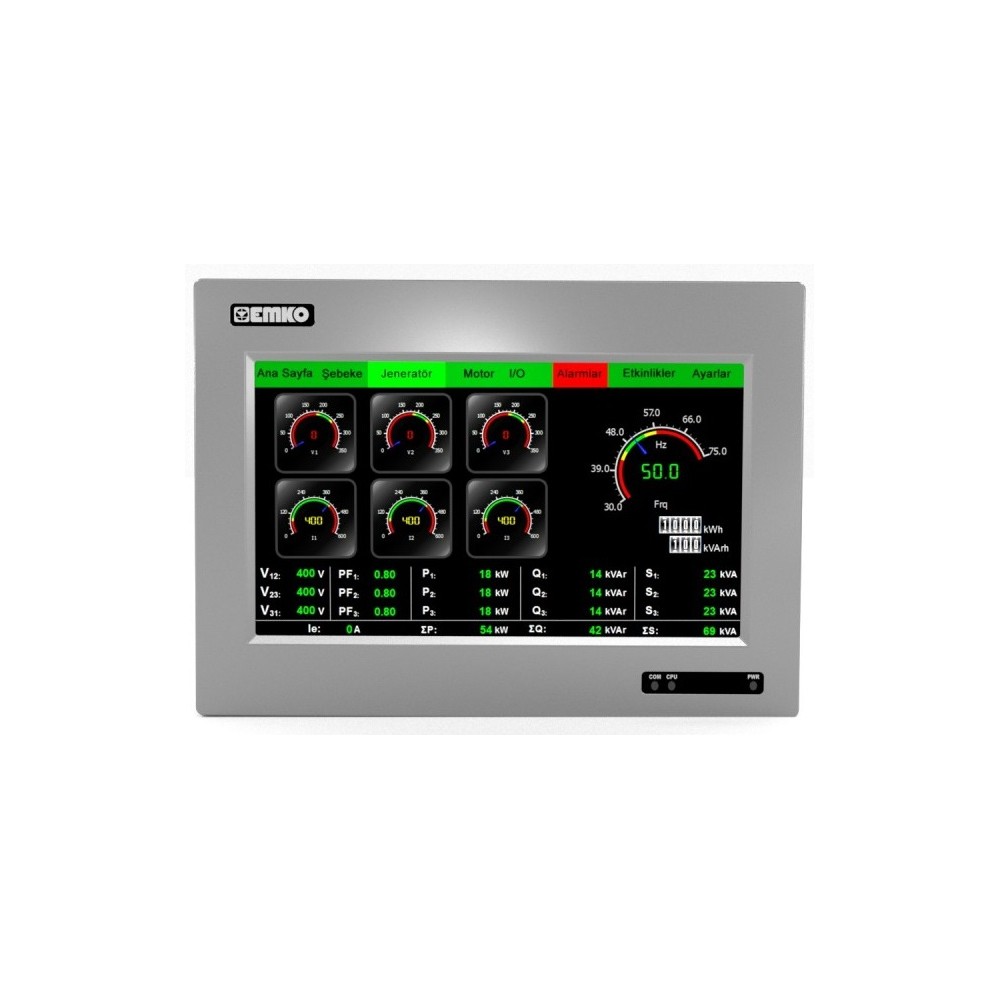

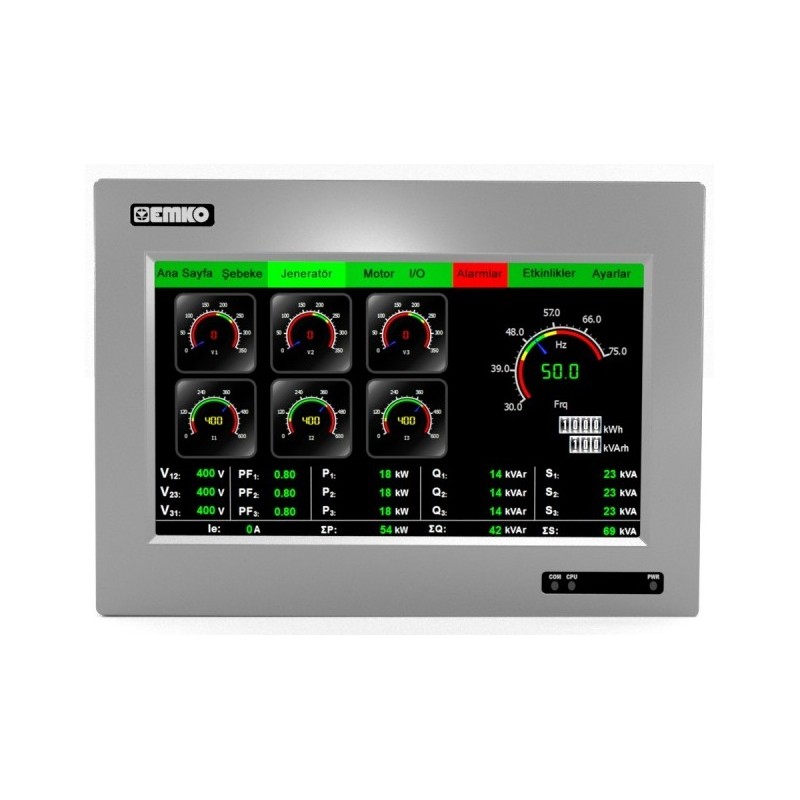

Proop 10.1 10.1 inch Professional Operator Panel
New product
Proop 10.1
10.1 inch Professional Operator Panel
Process Visualisation / Control, Remote Visualisation / Control, Analogue Inputs / Outputs, Digital Inputs / Outputs
| Graphics / Visual Features | |
| Display Type | 10.1 inch TFT |
| Display colors | 16M colors |
| Resolution | 1024x600 |
Physical Features |
|
| Dimensions | 278 mm x 200 mm 50 mm |
| Panel Cut-out | 258 x180 mm |
| Weight | Approximately 1300g. |
| Technicial Specifications | |
| Serial Communication-2 | RS-485 (Terminal) |
| Serial Communication-3 | RS-232 (Terminal) |
| Serial Communication-4 | RS-232 (DB-9 socket) |
| MCU | ARM Cortex-A Series |
| Flash Memory | 4GB eMMC |
| RAM | 512 MB DDR3 SDRAM |
| Buzzer | Build in |
| USB Device | 1 x USB 2.0 |
| USB Host | 1 x USB 2.0 |
