BNS03JY BNS 816-B10-TOB-08-603-11
New product

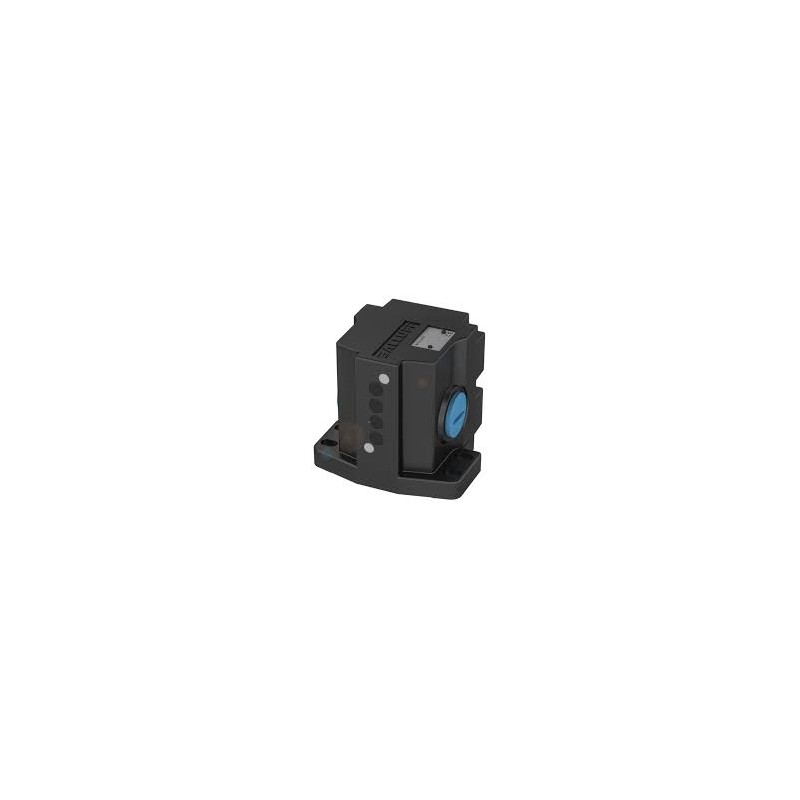

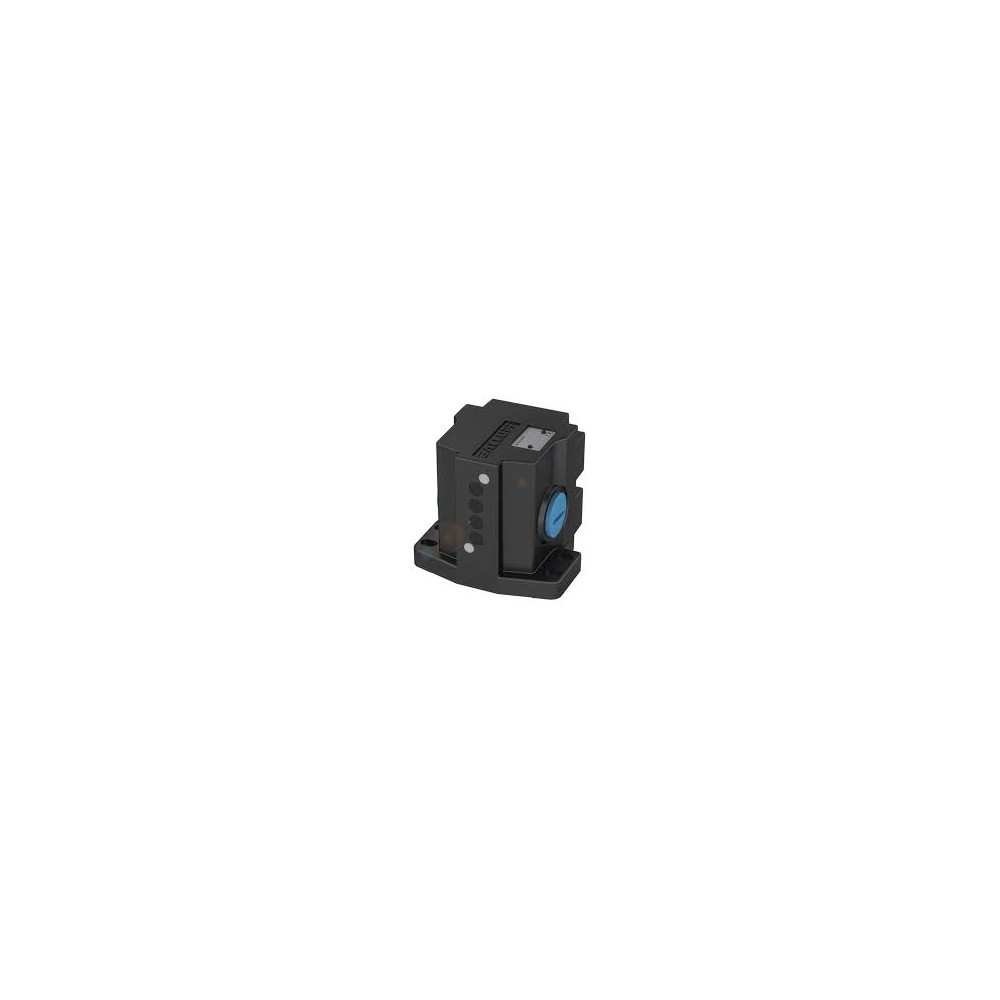

Balluff BNS03JY BNS 816-B10-TOB-08-603-11 Inductive multi-position limit switches
Dimension; 72 x 112 x 60 mm
Outer body material; Aluminium, Anodized
Version; Inductive
Range; 1.1 mm
Switching frequency; 500 Hz
Continuous current; 0.13 A
Rated operating voltage; 24 V DC
Installation; Vertical
Switch position spacing; 8 mm
Connection type; Screw terminal
Ambient temperature; -25...70 °C
IP rating; IP67
