(RTS) Bayonet Bore Type Pt-100 Thermoresistances - INTEGRAL ELEKTRONIK LTD.STI.

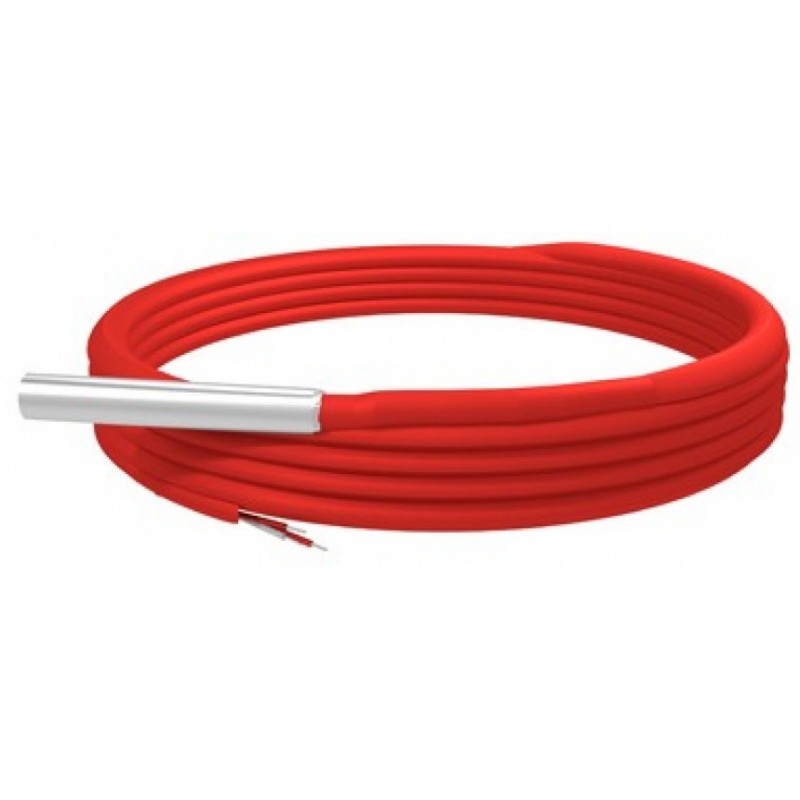

(RTS) Bayonet Bore Type Pt-100 Thermoresistances

New product

FeaturesDescriptions
Max. operating temperature400°C for braided wire
200°C for silicone
Standard cable typesFiber glass + fiber glass + braided wire, 3x 0,22mm : (RT) Standard Production
Silicone + Silicone, 3x 0,22mm : "Si+Si" is added to order code
Standard cable lengthK01 = 1 mt, K02 = 2 mt, K03 = 3 mt,
K04 = 4 mt, K05 = 5 mt
Sensor typeDIN/EN60751Class "B" 1xPt-100
Protection tube materialAISI304 (DIN1.4301) Stainless steel
Connector1/4 x 19" (optional M12" )
Fittingnut
Transmitter
