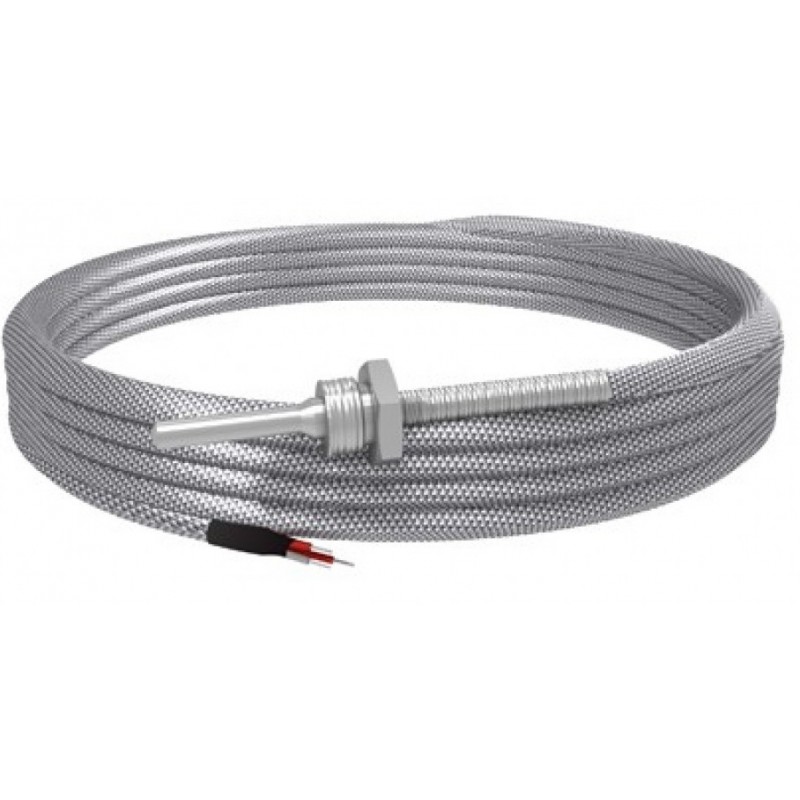

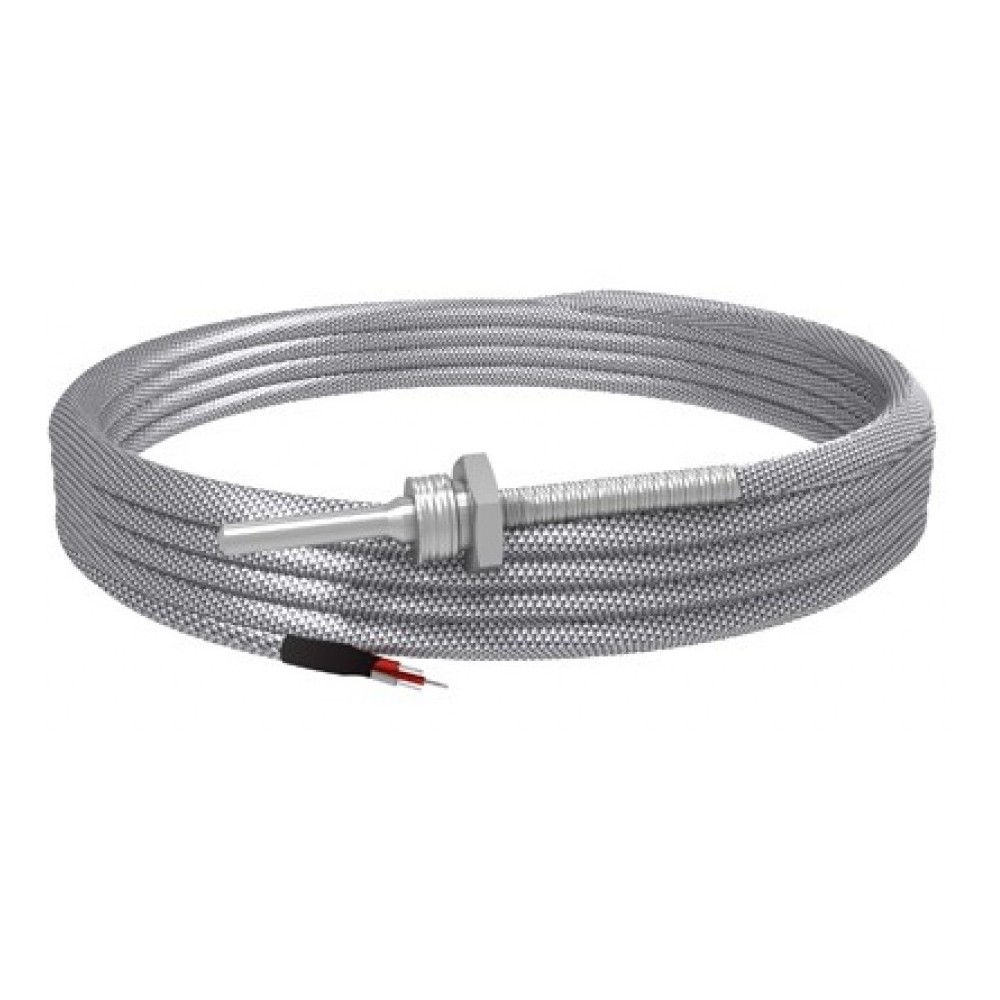

(RTR) Bayonet Type Pt-100 Thermoresistances with fittingnut
New product
| Features | Descriptions |
| Max. operating temperature | 400°C for braided wire 200°C for silicone |
| Standard cable types | Fiber glass + fiber glass + braided wire, 3x 0,22mm : Standard Production Silicone + Silicone, 3x 0,22mm : "Si+Si" is added to order code |
| Standard cable length | K01 = 1 mt, K02 = 2 mt, K03 = 3 mt, K04 = 4 mt, K05 = 5 mt |
| Sensor type | DIN/EN60751Class "B" 1xPt-100 (E=1) or 2xPt-100 (E=2) |
| Protection tube material | AISI304 (DIN1.4301) Standard production, "316" is added to order code for AISI316. |
| Connector | |
| Fittingnut | ½" fittingnut is used for standard production |
| Transmitter |
