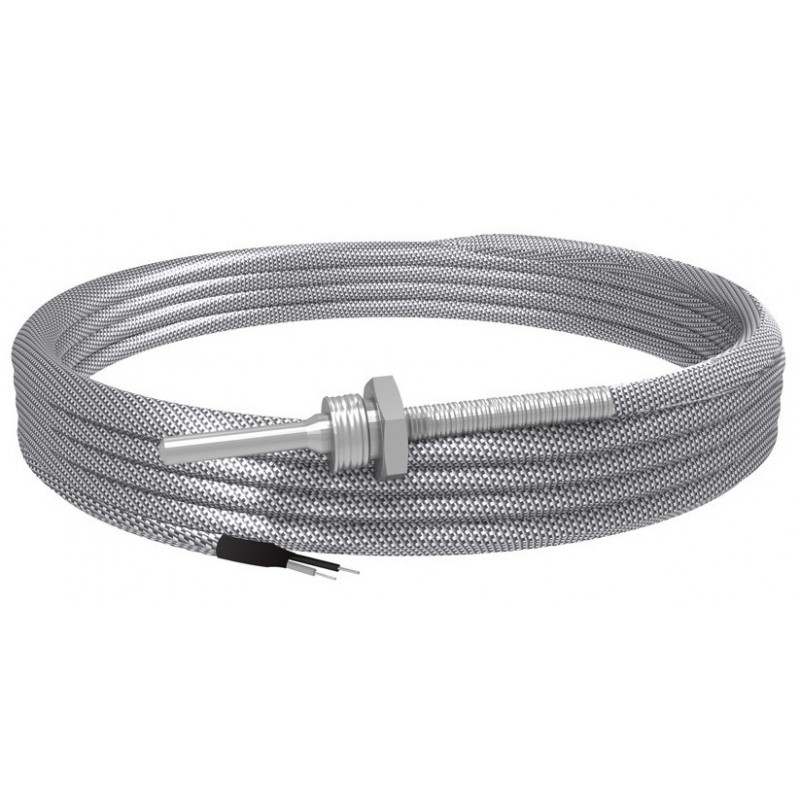

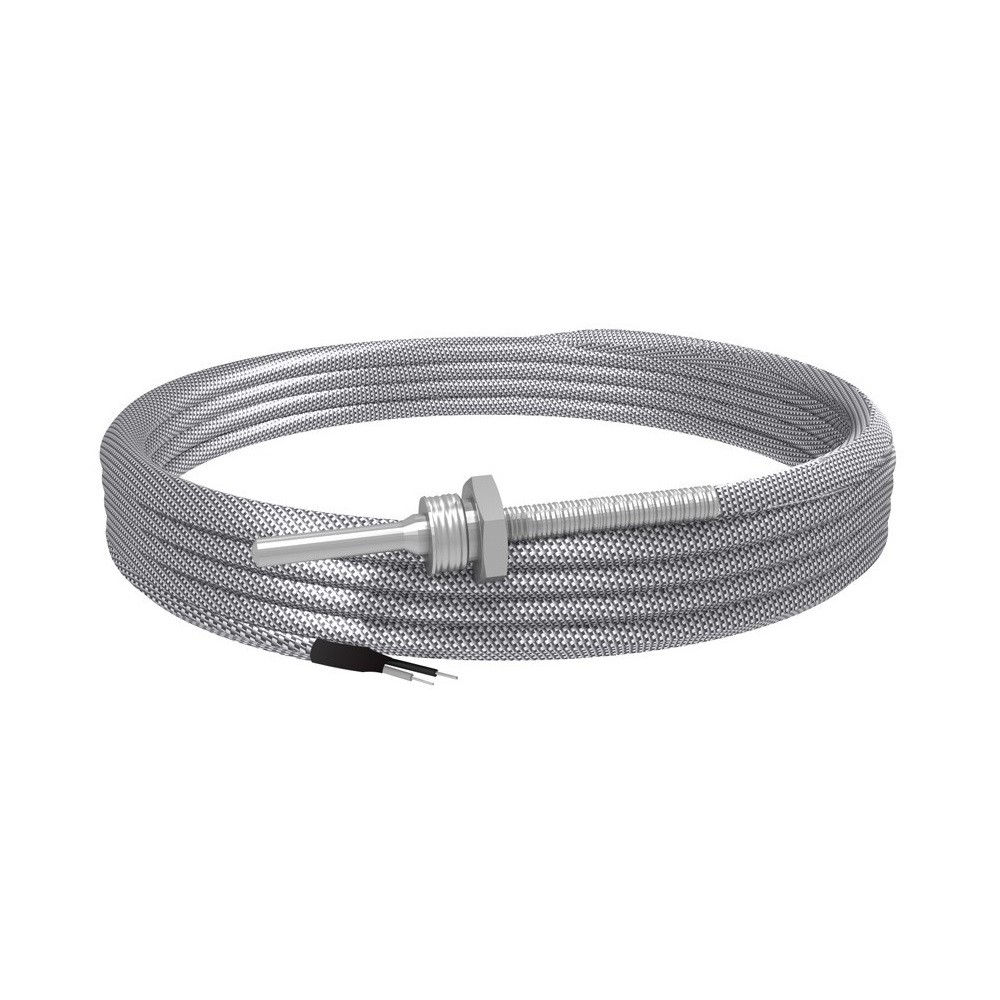

Bayonet Type with Fittingnut “J” and “K” type Thermocouples

New product

Features Descriptions
Max. operating temperature 400°C for braided wire
200°C for silicone
Standard cable types Fiber glass + fiber glass + braided wire, 2x 0,22mm : Standard Production
Silicone + Silicone, 2x 0,22mm : "Si+Si" is added to order code
Standard cable length K01 = 1 mt, K02 = 2 mt, K03 = 3 mt,
K04 = 4 mt, K05 = 5 mt
Sensor type DIN/IEC-584 "J" FeCu-Ni E= J,
DIN/IEC-584 "K" NiCr-Ni E= K
Protection tube material AISI304 (DIN1.4301) Stainless Steel
Connector 1/4 x 19" (selectable as M12" on ordering)
Fittingnut ½" fittingnut is used for standard production
Transmitter
