(TC) Standart Bayonet Type “J” and “K” Type Thermocouples - INTEGRAL ELEKTRONIK LTD.STI.

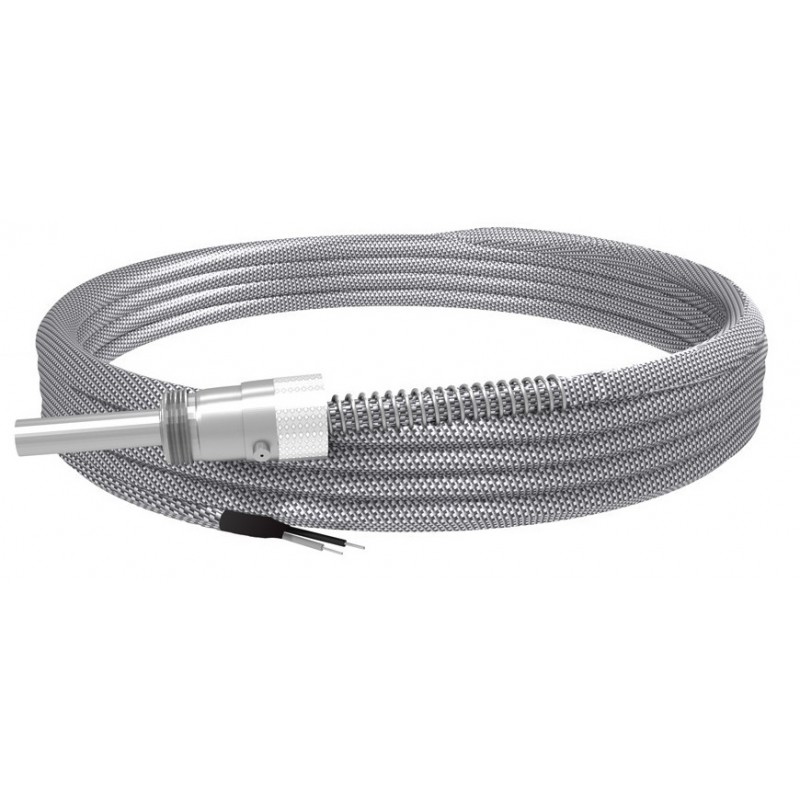

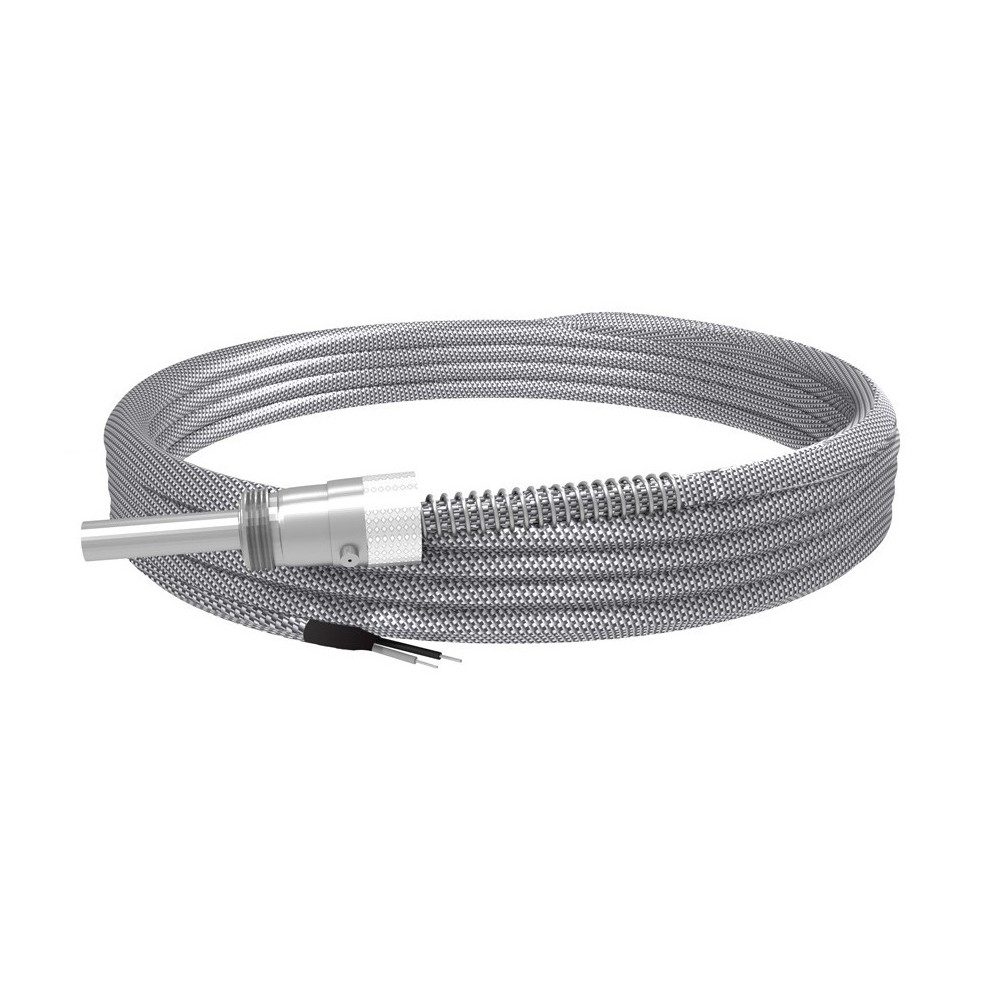

(TC) Standart Bayonet Type “J” and “K” Type Thermocouples

New product

FeaturesDescriptions
Max. operating temperature400°C for braided wire
200°C for silicone
Standard cable typesFiber glass + fiber glass + braided wire, 2x 0,22mm : Standard Production
Silicone + Silicone, 2x 0,22mm : "Si+Si" is added to order code
Standard cable lengthK01 = 1 mt, K1,5 = 1,5 mt, K02 = 2 mt
K03 = 3 mt, K04 = 4 mt, K05 = 5 mt
Sensor typeDIN/IEC-584 "J" FeCu-Ni E= J,
DIN/IEC-584 "K" NiCr-Ni E= K
Protection tube materialNickel coated brass
ConnectorStandard 1/4 x 19" (selectable as M12" on ordering)
Fittingnut
Transmitter
