PWR-IE480W-PCAC-L
New

PWR-IE480W-PCAC-L

New product

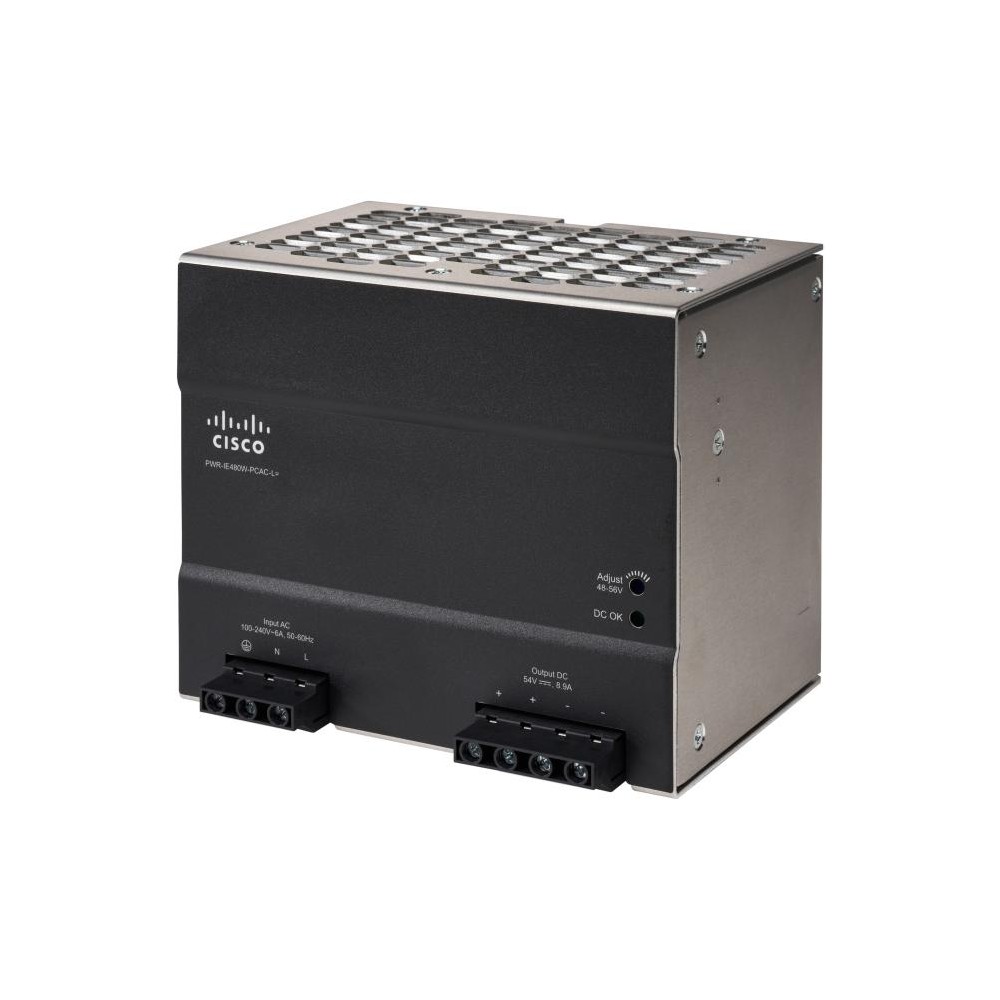

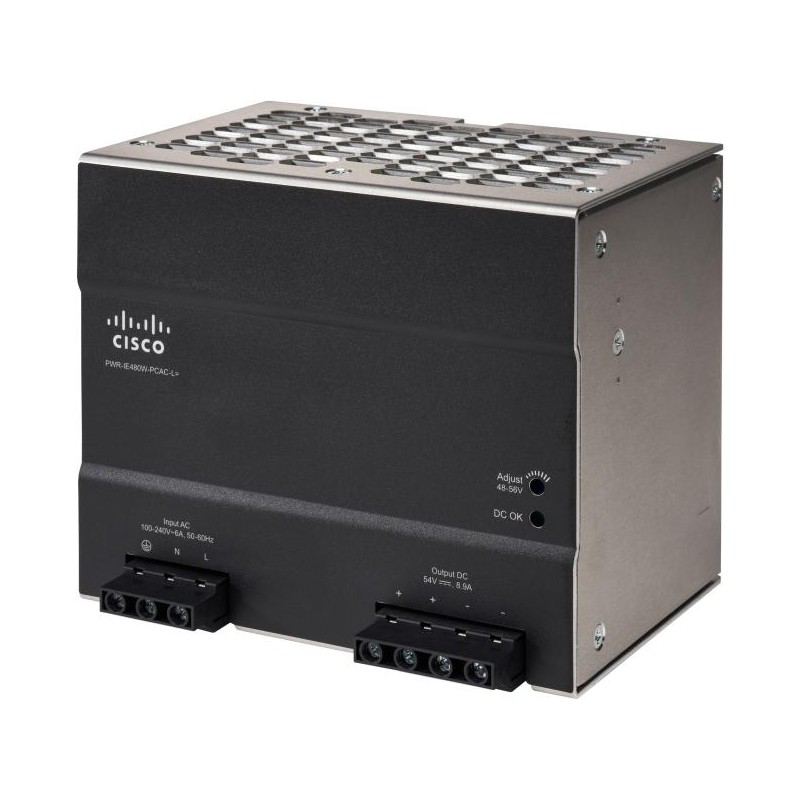

Cisco PWR-IE480W-PCAC-L

Rated nominal input operating range

Supported input voltage operating range

Typical efficiency

Inrush current at 25C ambient

Remarks

AC 100-240V/6A, 50-60Hz

AC 90-264V

92%

< 35A @ 115VAC

and 230VAC

Not approved for hazardous location installations

Nominal output voltage / adjustment range

Max output power

Holdup time at 100% load

Protections

54VDC / 48-56VDC, 8.9A

480W                           20ms

IP rating

Operating temperature

Storage temperature

Power derating

Operating humidity

IP20

-40°C to +75°C

-40°C to +85°C

Vertical mounting:

> 50°C de-rate power by 2.5%/°C

> 70°C de-rate power by 5%/°C

5 to 95% RH

(non-condensing)

Dimensions (W x H x D)

Unit weight

144 mm x 121 mm x 118.6 mm

5.66 in x 4.76 in x 4.66 in

3.02 lb (1.37 kg)
