New
6GK5626-2GS00-2AC2
New product

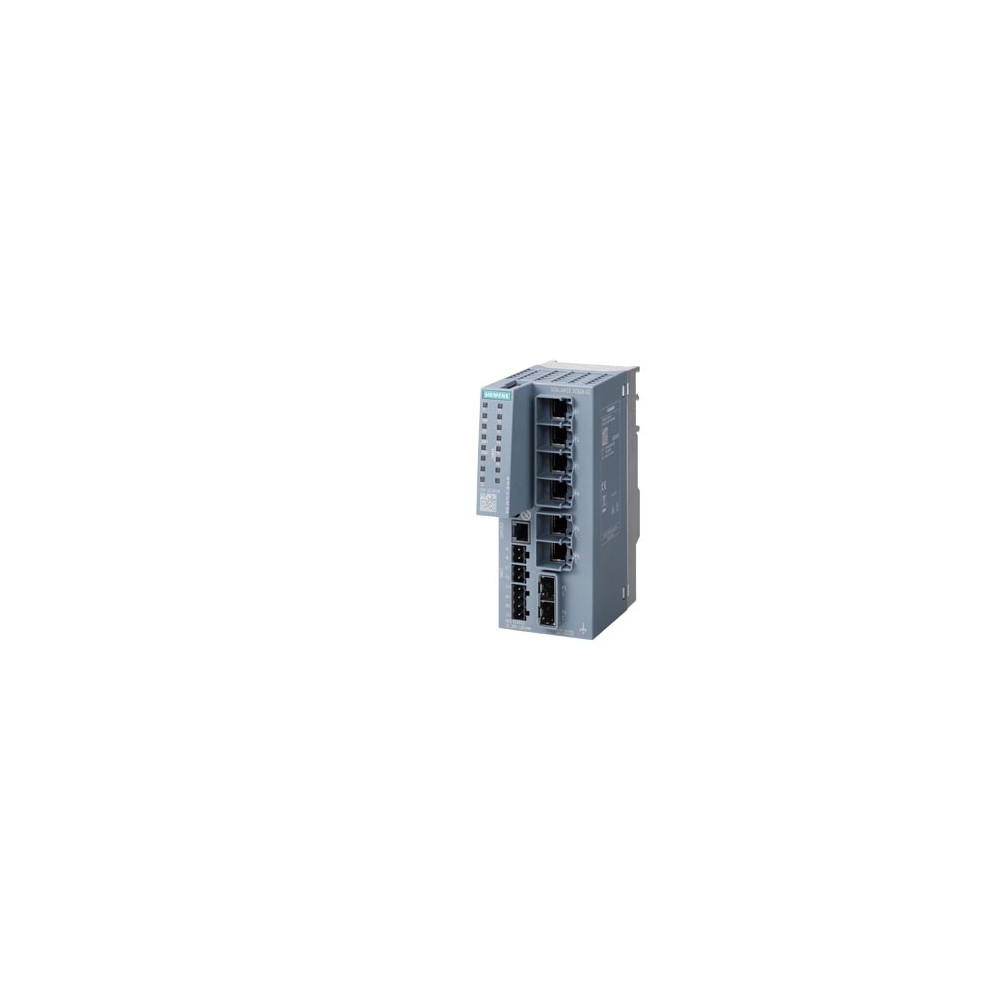

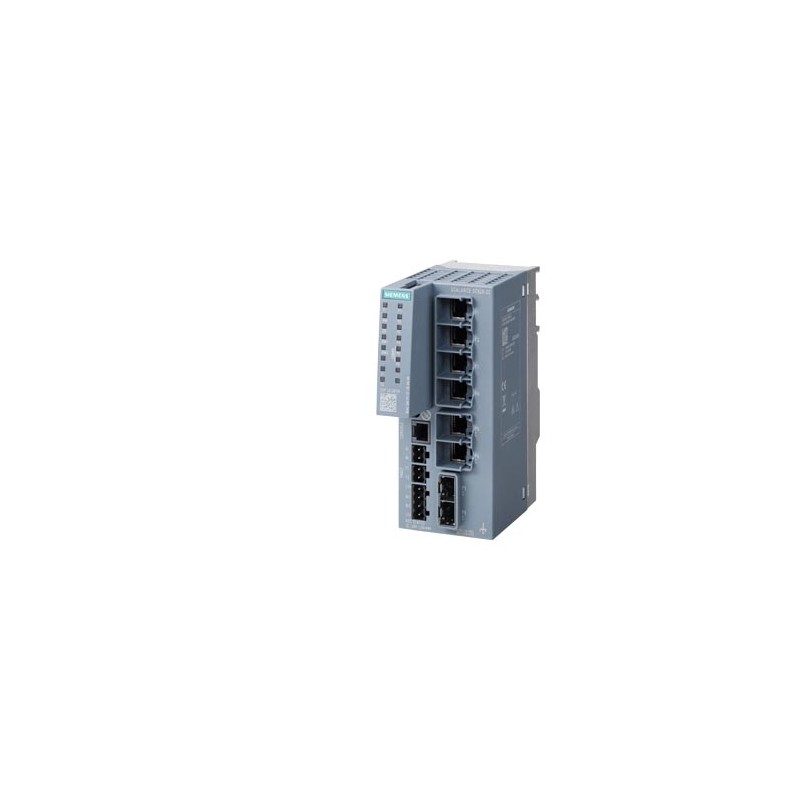

Siemens 6GK5626-2GS00-2AC2
| product type designation | SC626-2C | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5626-2GS00-2AC2 | |
| transfer rate | ||
| transfer rate | 10, 100, 1000 Mbit/s | |
| interfaces | ||
| number of electrical/optical connections / for network components or terminal equipment / maximum | 6 | |
| number of electrical connections | ||
| ● for signaling contact | 1 | |
| ● for power supply | 1 | |
| ● for redundant voltage supply | 1 | |
| design of the removable storage / C-PLUG | Yes | |
| signal inputs/outputs | ||
| number of electrical connections | ||
| ● for digital input signals | 1 | |
| type of electrical connection | ||
| ● for digital input signals | 2-pole terminal block | |
| ● for digital output signals | 2-pole terminal block | |
| operating voltage / of the signaling contacts / at DC / rated value | 24 V | |
| operational current / of the signaling contacts / at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | ||
| supply voltage / 1 / rated value | 24 V; (with plugged-in SFPs) | |
| power loss [W] / 1 / rated value | 13.2 W | |
| supply voltage / 1 / rated value | 9.6 ... 31.2 V | |
| consumed current | ||
| ● 1 / maximum | 0.55 A | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -40 ... +70 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
