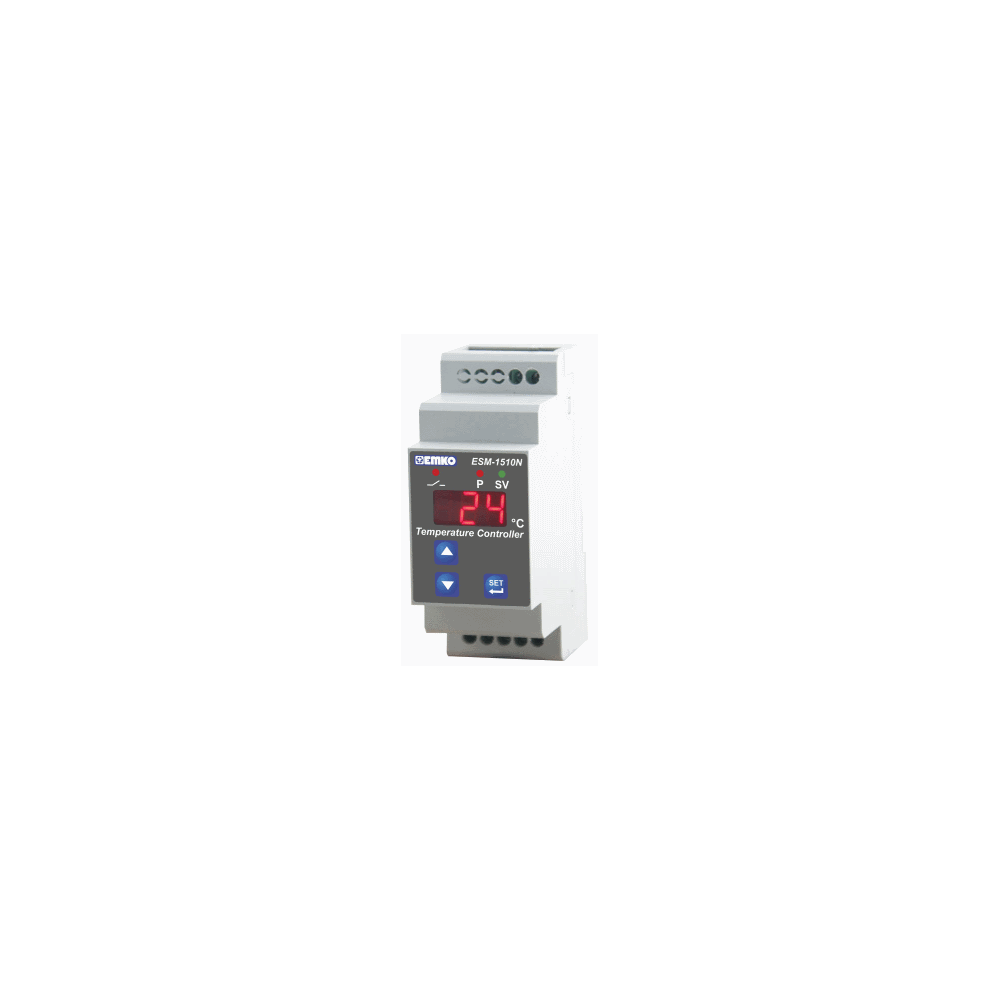

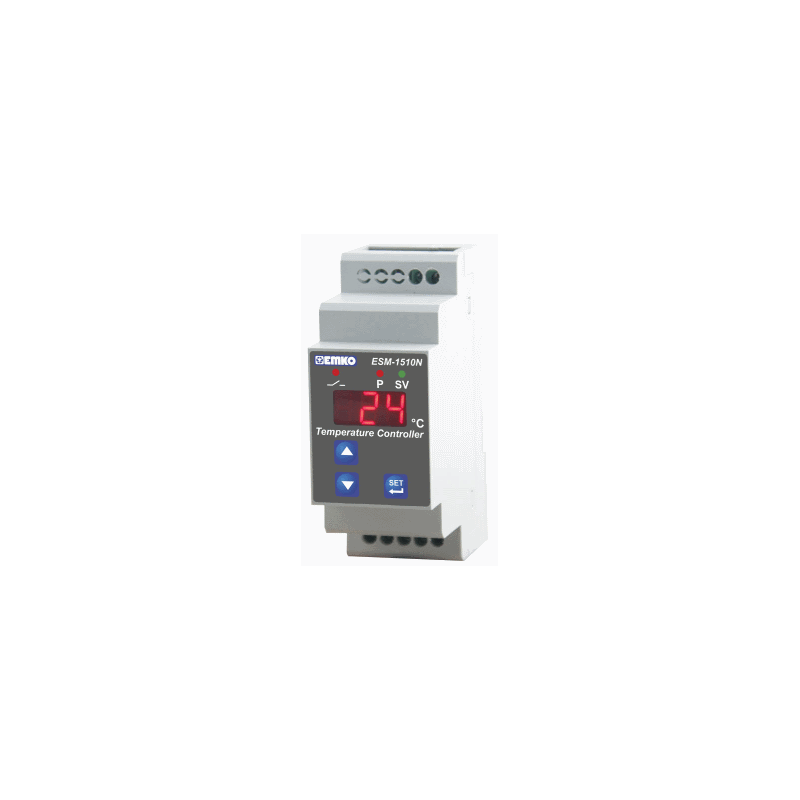

ESM-1510-N Rail Mounting Type Digital ON/OFF Temperature Control Device

Condition: New product

More info

ESM-1510-N
Rail Mounting Type Digital ON/OFF Temperature Control Device

ESM-1510 is a temperature control device with the features of rail mountability, PT-100, PTC, NTC, Fe-Const (J) or Nicr-Ni (K) Thermocouple input, single set, relay or SSR output, selectable heating and cooling function, user friendly front display and buttons

Display and Front Panel
Buttons	Set and direction buttons
Relay Output Led	Output active 3mm red led
Display	14mm red 3 digit LED display
Body
Physical Features	90 mm x 35 mm 59 mm
Protection Class	IP20
Weight	Approximately 0.14 Kg..
Installation	DIN Rail Mounting
Electrical Features
Supply Voltage and Power	230 V ~ (+%15) 50/60 Hz. 1.5 VA 115 V ~ (+%15) 50/60 Hz. 1.5 VA 24 V ~ (+%15) 50/60 Hz. 1.5 VA 24 Vac/dc (+%15, +%10) 50/60 Hz. 1.5 VA
Sensor Inputs	NTC, PTC, TC, RTD NTC (10k @.25 ℃) NTC (1000 @.25 ℃) PTC (10k @.25 ℃) J, K (IEC584.1)(ITS90) PT-100, PT-1000 (IEC751)(ITS90)
Scale	Fe CuNi 0℃...800℃ NiCr 0℃...999℃ PT 100 -50℃...400℃ / -19,9℃...99.9℃ NTC 100 -50℃...400℃ / -19,9℃...99.9℃ PT 1000 -50℃...400℃ / -19,9℃...99.9℃ PTC -50℃...130℃ / -19,9℃...99.9℃
Accuracy	± % 1 of full scale for Thermocouple and Thermoresistance
Outputs
Relay Output	5 A@250 V~ at resistive load
SSR Output	Maximum 15 mA@5 V DC
Control
Hysteresis	1 to 100℃ for TC type devices, 1 to 100℃ for PT-100 (-50℃, 400℃) and PT-1000 (-50℃, 400℃) , 0.1 to 10.0℃PT-100 (-19.9℃, 99.9℃) and PT-1000 (-19.9℃, 99.9℃), 0.1 to 10.0℃ PTC (-19.9℃, 99.9℃) and NTC (-19.9℃, 99.9℃) 1 to 20℃PTC (-50℃, 130℃) and NTC (-50℃, 100℃)
Control Form	On / Off
Reading Frequency	3 readings per second
Quality Standarts
Approvals	GOST-R, CE
