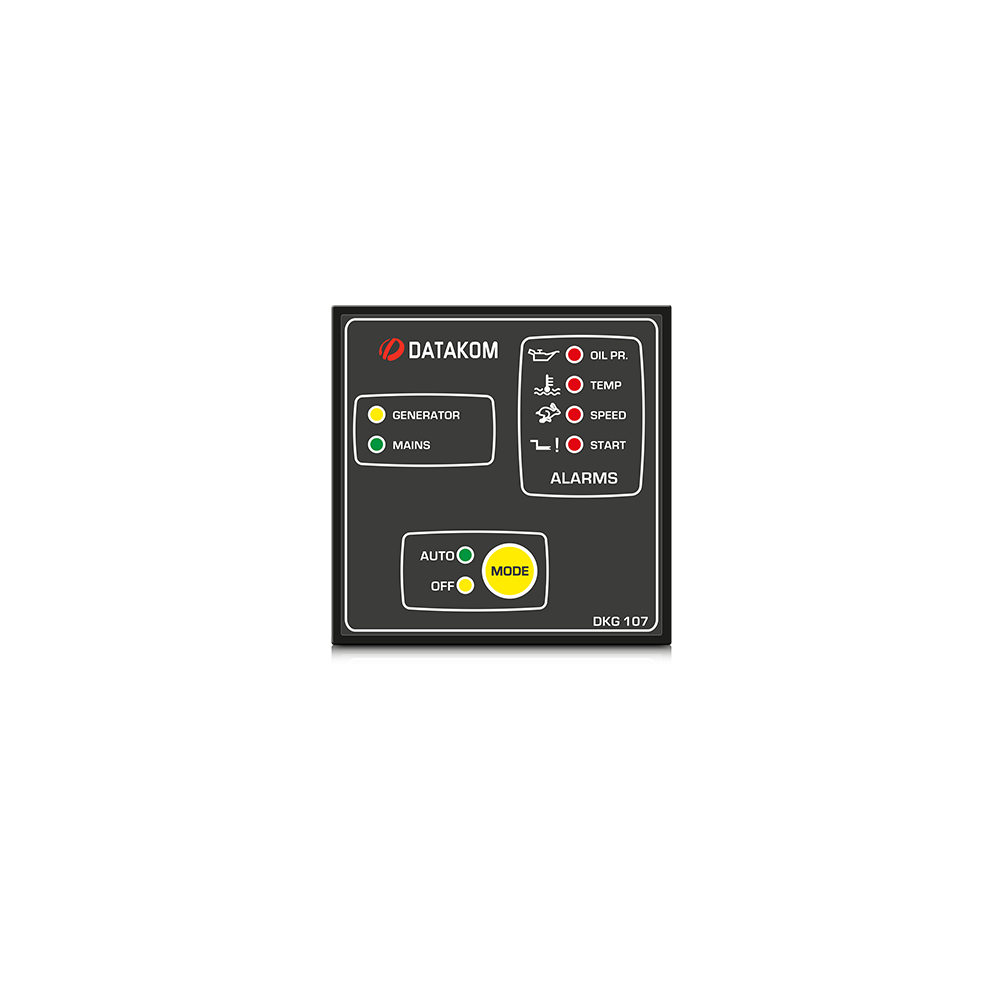

DKG-107 AUTOMATIC MAINS FAILURE UNIT
The DKG-107 is a low cost microprocessor based digital unit offering all basic functions needed for the automatic control of a genset including changeover contactors.
The unit fits into a standard 72x72mm panel meter opening and offers a very cost effective and space saving solution for the basic genset control.
In automatic mode, the unit monitors 3 phases of the mains and controls the automatic starting, stopping and load transfer of the generator.
When the engine is running, the unit monitors fault conditions and shuts-down the engine automatically in the occurrence of an alarm.
The alarms are identified by a group of LEDs displaying only the first occurring one.
DKG-107 provides factory adjusted timers. However it has Oil Level Switch and 60Hz options selected by jumper switches and a potentiometer adjusted low voltage limit situated at the bottom of the unit.
Automatic engine starting and stopping
Automatic mains failure monitoring
Automatic load transfer
Automatic shutdown on fault condition
3 phase mains voltage inputs
1 phase genset voltage input
Survives cranking dropouts
Mains phases voltage limit checking
Generator phase voltage limit checking
Delayed overspeed and underspeed alarm
Lamp test
50/60Hz operation
Selectable Oil pressure/Oil level switch
Sealed front panel
Plug-in connection system for easy replacement
Standard panel dimensions, (72x72mm) Low cost
